21038821405
| Manufacturer | |
| Description | CIRCULAR CONN M12 CRIMP MALE Ethernet & Telecom Connectors M12 MALE CRIMP D-CODING CONN HSG PLUG 4POS CABLE PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M12 MALE CRIMP D-CODING Conn Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CircularConnectorM12crimpmaleD-code Han M12 Crimp: Circular Connector M12 crimp male D-code Harting 4路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Other Names | 1195-3275 | Part # Aliases | 021 021-03-882-1405 03 1405 882 |
| Product Category | Circular Metric Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 250 V | Connector Impedance | M12 |
| Current Rating (Max) | 4 A | ||
Mechanical
| Diameter | 19.5 mm | Packaging | Bulk |
| Cable Exit | No | Orientation | D |
| Shell Style | Plug | Termination | Crimp |
| Weight (g): | 42.00000 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Cable Diameter | 4.5 mm to 8.8 mm |
| Connector Type | Plug for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Cable | Length - Overall | 41.5 mm |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Male | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | M12-4 |
Product Info
| Note | Contacts Not Provided | Type | Circular Connector |
| Features | Shielded, Strain Relief | Product Type | Connectors |
Environmental
| Seal Rating | IP 65, IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts

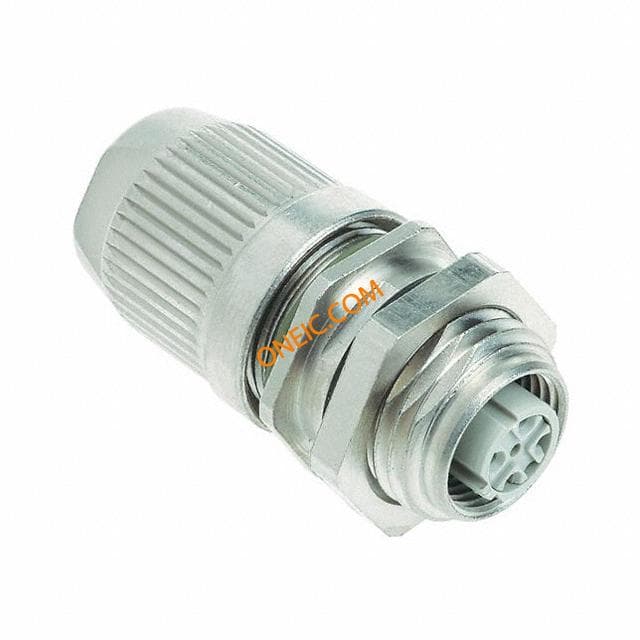

21038822425
HARTING
Circular Metric Connectors PFT M12 CRMP SHIELD D-DCODE 4POL FEM Conn Circular 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONN HSG RCPT 4POS PNL MNT SKT 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector Han M12 Crimp: PFT M12 crimp shielded D-cod.4pol.female Harting 4路 面板安装 直向 连接器 插座

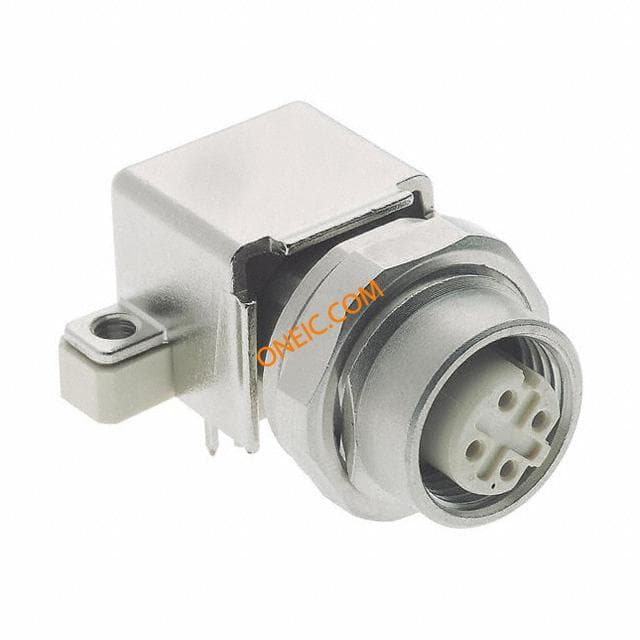

21033814430
HARTING
Circular Metric Connectors M12 PNL FEEDTHRU PCB ANG D-CODE M12 PNL FEED THRO PCB ANG D-CODE PCB Receptacles M8/M12: M12 Panel feed though/PCB angled D-coded

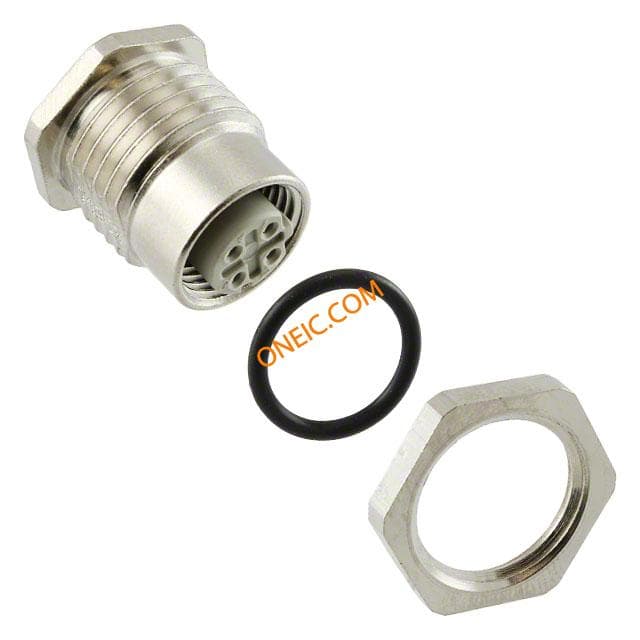

21033712415
