点击放大查看

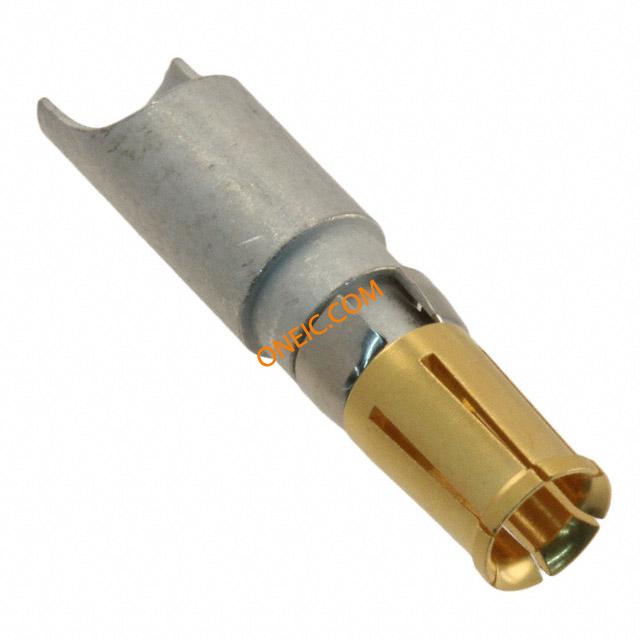

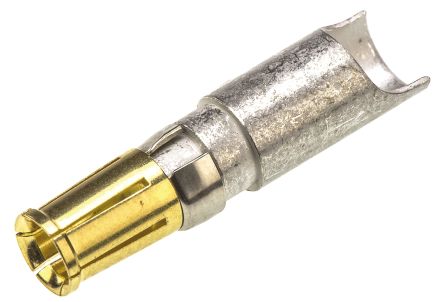

09691817423
| Manufacturer | |
| Description | D-Sub Contacts FEMALE CONTACT 40 AMPS SOLDER Contact SKT Solder Cup ST Cable Mount DSUB MIXED FE 40 A S POWER CONT D-Sub High current solder 40A F 8-10AWG D-SubHighcurrentsolder40AF8-10AWG Harting 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 10 → 8 AWG |
| Category |
Business
| Part # Aliases | 09 09-69-181-7423 181 69 7423 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 1 | Current Rating (Max) | 40 A |
Mechanical
| Depth | 5.5 | Height | 5.5 |
| Length | 23mm | Packaging | Bulk |
| Shield Type | No | Termination | Solder Cup |
| Contact Form | Machined | Contact Type | Power Contacts |
| Mounting Type | Cable Mount | Connector Type | Connector D-Subminiature |
| Contact Finish | Gold | Contact Material | Copper Alloy |
| Length - Overall | 23 | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Termination Finish | Gold | Contact Termination | Solder Cup |
| Contact Finish Thickness | 31.5µin (0.80µm) | Wire Gauge or Range - mm2 | 10 → 8 AWG |
| Termination Finish Thickness | 8µin (0.20µm) | ||
Product Info
| Type | Power | Gender | SKT |
| Series | D-Sub Mixed | ||
Environmental
| Operating Temperature | 155 | ||
Documents & Media
