09691812550
| Manufacturer | |
| Description | D-Sub Contacts DSUB FE STR HIGH VOLT CONT Contact SKT Solder Cup ST Cable Mount DSUB FE STR HIGH VOLTAGE CONTACT D-Sub Mixed High voltage AWG 24-20 F 09691812550 CONTACT, FEMALE, HIGH VOLTAGE D-SubMixedHighvoltageAWG24-20F Harting D-Sub Mixed 系列 1 路 直向 电缆安装 混合印刷电路板 D-Sub 连接器 插座 |
| Category |
Business
| Part # Aliases | 09 09-69-181-2550 181 2550 69 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 3000 V | Contact Resistance | 3 |
| Current Rating (Max) | 14 A | ||
Mechanical
| Length | 18.6mm | Weight | 0.0145 |
| Packaging | Bulk | Wire Gauge | 24-20 |
| Shield Type | No | Termination | Solder Cup |
| Contact Form | Machined | Contact Type | Power |
| Mounting Type | Cable Mount | Connector Type | Connector D-Subminiature |
| Contact Finish | Gold | Contact Material | Copper Alloy |
| Length - Overall | 18.6 | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 1 |
| Termination Finish | Gold | Contact Termination | Solder |
| Contact Finish Thickness | 51.2µin (1.30µm) | Wire Gauge or Range - AWG | :24AWG |
| Wire Gauge or Range - mm2 | :0.56mm² | Termination Finish Thickness | 51.2µin (1.30µm) |
Product Info
| Type | Power | Gender | SKT |
| Series | :D-Sub-M | Features | Insulator, PTFE |
| For Use With/Related Products | :D Sub Connectors | ||
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | +125°C |
Documents & Media
Similar Parts
09693000055
HARTING
D-Sub Mixed Contact Connectors 5P FML SHELL 5W5 5 SIGNAL THRU HOLE DSUB FE 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 F D-SubMixedConnector5W5F Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插座
09691000022
HARTING

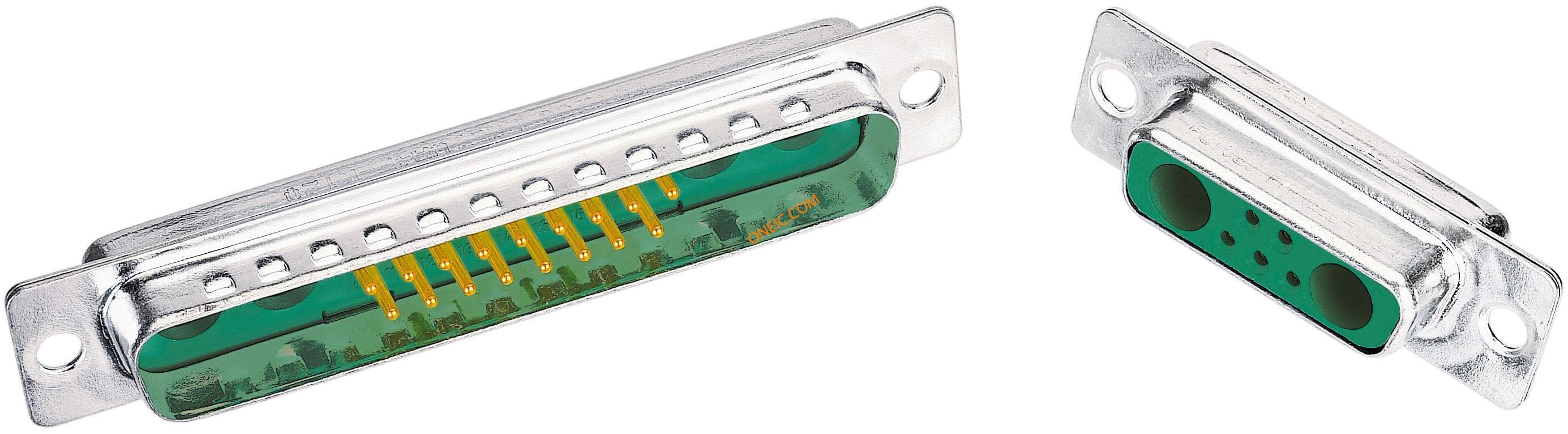

D-Sub Mixed Contact Connectors D SUB FE 2W2C WITHOUT CON DSUB FE 2W2C WITHOUT CONTACT D-Sub Mixed Connector 2W2C F D-SubMixedConnector2W2CF Special D-Sub; for special contacts; PIN:2; female; for cable Harting 电缆安装 2（功率/同轴） 路 混合焊接 D-sub 连接器 插座
