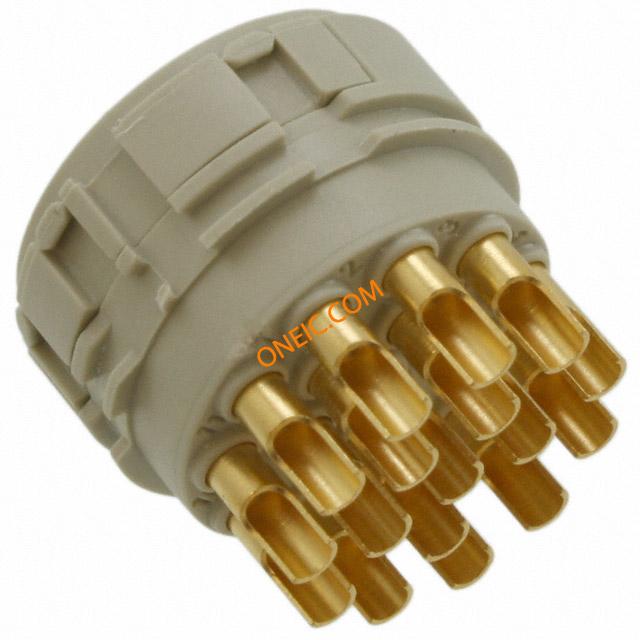

09152172703
| Manufacturer | |
| Description | HAN R23 POS. 17 F INSERT SOLDER Heavy Duty Power Connectors FEMALE INSERT METAL SOLDER TERM CONN INSERT 17POS SLD CUP SKT Connector: M23; female; soldering; 60V; PIN:17; 7A Han R23 Female Insert: Han R23 Position 17 F Insert Solder Insert female solder 17, 09152172703, HARTING |
| Category |
Business
| Part # Aliases | 09 09-15-217-2703 15 217 2703 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 60V | Number of Poles | 17 |
| Current Rating (Max) | 7A | Current Rating - Appliance Inlet | 7 |
Mechanical
| Weight | 7.5 g | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder Cup |
| Mounting Type | soldering | Connector Type | Insert, Female Sockets |
| Contact Finish | Gold | Insertion Force | Female |
| Contact Material | Au | Housing Material | Polycarbonate (PC) |
| Package Quantity | 1 | Termination Style | Solder |
| Number of Positions | 17 | ||
Product Info
| Spg | 1 | Type | CONNECTORS |
| Series | Han R23 | Features | Insert Only, Requires Shell |
| Main Purpose | Insert Only, Requires Shell | Product Type | Inserts |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 115°C | ||
