点击放大查看

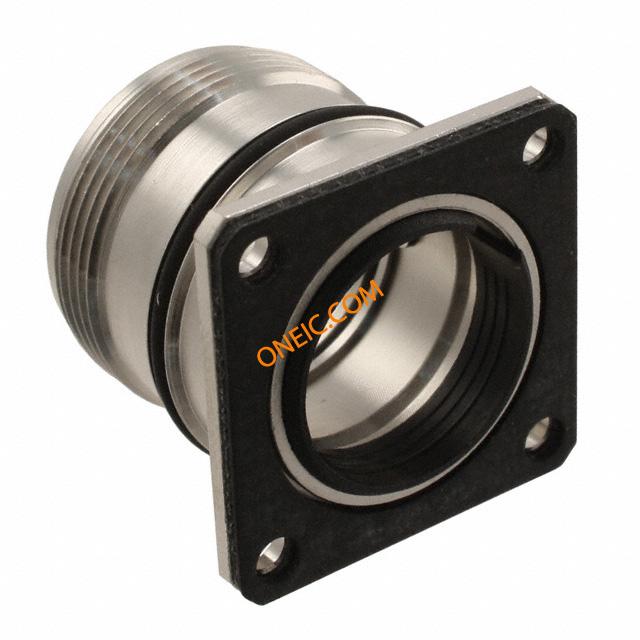

09152000301
| Manufacturer | |
| Description | HAN R23 BULKHEAD MOUNTED FRONT Heavy Duty Power Connectors STD METAL HOUSING W/ FLAT SEALING CONN HSG INSERT SHELL PNL MNT HanR23Bulkheadmountedfront Han R23 Housings: Han R23 Bulkhead mounted front Chassis shell R23 4 x ø 2.7mm, 09152000301, HARTING Harting R23 系列 0915 法兰安装 直向 外壳 插座 , 螺丝锁接合 |
| Category |
Business
| Part # Aliases | 0301 09 09-15-200-0301 15 200 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Mounting Type | Panel Mount, Flange | Connector Type | Insert Shell |
| Fastening Type | Threaded | Housing Material | Zinc |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Shell Material, Finish | Copper Zinc Alloy, Nickel Plated | ||
Product Info
| Note | Contacts Not Provided | Type | CONNECTORS |
| Series | Han R23 | Description | Chassis shell R23 4 x ø 2.7mm |
| Product Type | Housings | Base Product Number | 0915 |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +115°C |
