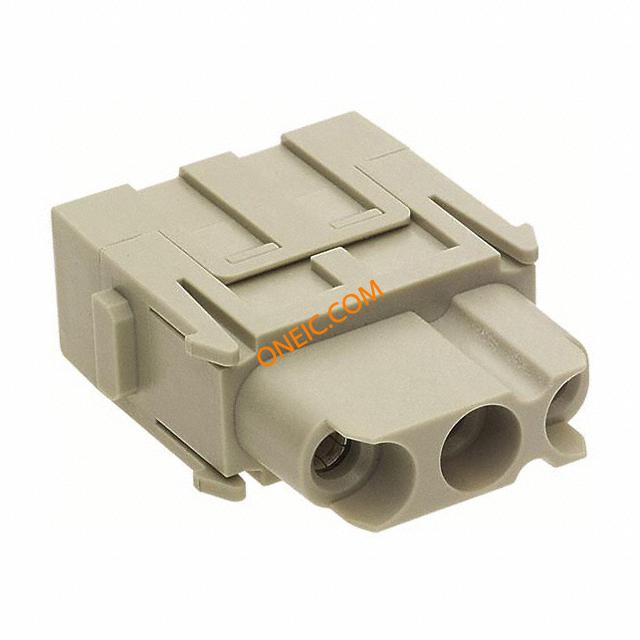

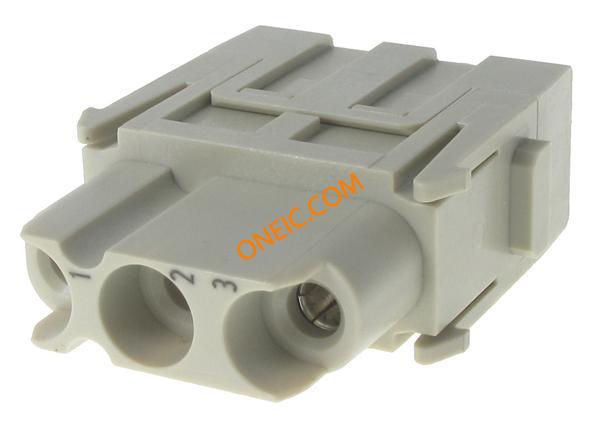

09140032701
| Manufacturer | |
| Description | HAN C AXIAL MODULE FEMALE Heavy Duty Power Connectors MOD-F-S 40A HAN-3 HAN3MOD-F-S40A Connector: HAN; module; female; Han Modular 40A; PIN:3; 40A; 690V Han-Modular Modules: Han 3 Mod-F-s 40A Harting HAN Modular 系列 1行 3针 插座 电源连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 003 09 09-14-003-2701 14 2701 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Contact Resistance | 0.3mΩ |
| Current Rating (Max) | 40A | ||
Mechanical
| Color | Gray | Weight | 0.03 kg |
| Packaging | Bulk | Orientation | 直 |
| Weight (g): | 31.27273 | Mounting Type | screw terminal |
| Connector Type | Module | Contact Finish | Silver |
| Number of Rows | 1 | Insertion Force | Female |
| Width - Overall | 1 | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Package Quantity | 4 |
| Termination Rows | 螺钉 | Connector - Cable | module |
| Termination Style | Screw | Number of Contacts | 3 |
| Number of Positions | 3 | Plating - Thickness | 3µm |
| Wire Gauge or Range - AWG | 14-8 | Wire Gauge or Range - mm2 | 2.5...8mm2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 4 | Type | CONNECTORS |
| Gender | Female | Series | Han® C |
| Product Type | Inserts | Adapter Series | Han Modular 40A |
| Number of Units | 1 | Base Product Number | 0914 |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40°C ~ 125°C |
