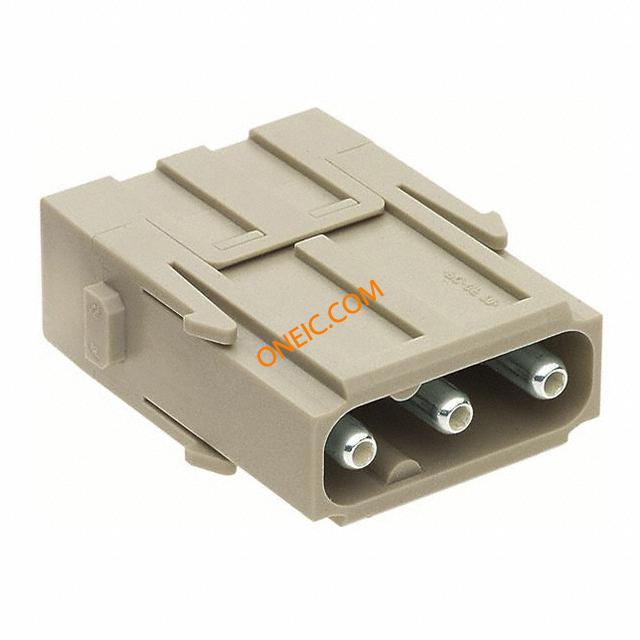

09140032601
| Manufacturer | |
| Description | HAN C AXIAL MODULE MALE Heavy Duty Power Connectors HAN 3 MOD-M 40A HAN 3 Mod-M-S 40A MODULE, MALE, AXIAL SCREW, 3WAY, 8MM HAN3Mod-M-S40A Connector: HAN; module; male; Han Modular 40A; PIN:3; 40A; 690V Han-Modular Modules: Han 3 Mod-M-s 40A Harting HAN Modular 系列 1行 3针 插头 电源连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 003 09 09-14-003-2601 14 2601 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Voltage - Working | :690V |
| Contact Resistance | :0.3mohm | Current Rating (Max) | 40A |
Mechanical
| Color | Gray | Weight | 3.34 |
| Packaging | Bulk | Wire Gauge | :2.5mm² |
| Termination | :Screw | Weight (g): | 33.00000 |
| Mounting Type | screw terminal | Connector Type | Module |
| Contact Finish | Silver | Number of Rows | :1 |
| Insertion Force | Male | Width - Overall | 1 |
| Contact Material | Copper Alloy | Housing Material | Polycarbonate (PC) |
| Package Quantity | 4 | Connector - Cable | module |
| Termination Style | Screw | 1st Contact Gender | :Pin |
| Number of Contacts | 3 | Contact Termination | :Screw |
| Number of Positions | 3 | Plating - Thickness | 3µm |
| Shell Size - Insert | :- | Wire Gauge or Range - AWG | 14-8 |
| Wire Gauge or Range - mm2 | :8mm² | Contact Material - Plating | silver plated |
Product Info
| Spg | 4 | Gender | Male |
| Series | :HAN | Product Type | Inserts |
| Adapter Series | Han Modular 40A | Number of Units | 1 |
| For Use With/Related Products | :Hinged frame Han Modular | ||
Environmental
| Mechanical Life | 500cycles | Ingress Protection | :3 |
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts

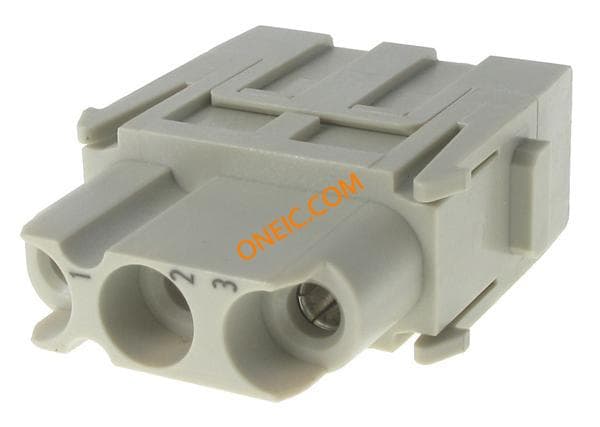

09140032701
