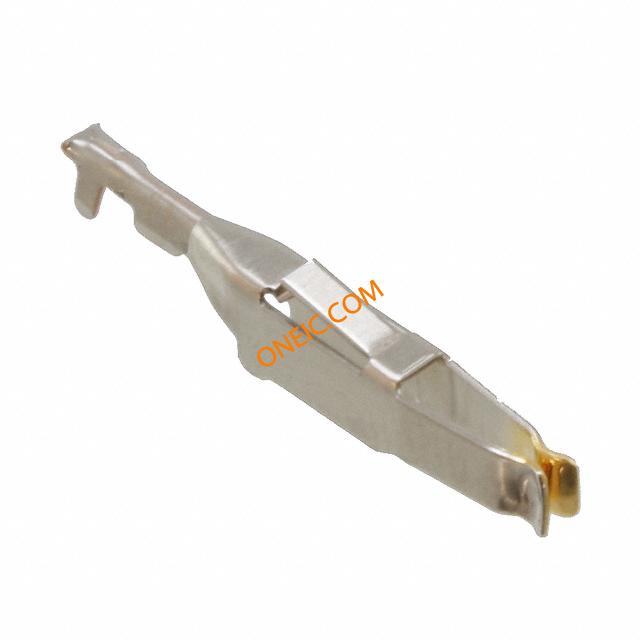

09060008484
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-POWER CRIMP 1 FEM PL2 SNGL DIN-POWER CRIMP 1,F, PL2, EINZEL DIN-Power crimp femalel Contact; female; 0.09÷0.25mm2; crimped Harting 09 06 系列 母 银 铜合金触点, 直 DIN 连接器触点 |
| Category |
Business
| Part # Aliases | 000 06 09 09-06-000-8484 8484 | Standard Package | 1 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 6 A |
Mechanical
| Pitch | 5.08 mm | Weight | 0.36 g |
| Packaging | Bulk | Wire Gauge | 24-28 AWG |
| Mounting Type | crimped | Pin or Socket | Socket |
| Connector Type | female | Contact Finish | Silver |
| Contact Material | Copper Alloy | Package Quantity | 50 |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | Female | Contact Termination | Crimp |
| Wire Gauge or Range - mm2 | 0.09...0.25mm2 | ||
Product Info
| Spg | 50 | Type | Power |
| Gender | Female | Series | 09 06 |
| Direction | 直 | CAD Drawing | 3D CAD Model |
| Product Type | Contacts | Number of Units | 1 |
| For Use With/Related Products | DIN41612 Type D Female Connector, DIN41612 Type E Female Connector, DIN41612 Type F Female Connector | ||
Environmental
| Operating Temperature | +125°C | ||
Documents & Media
Similar Parts
09990000621
HARTING
Punches & Dies 28-24AWG CRIMP SET FOR BC AND FC1 CONTS Connector Accessories Crimp Set 1CRIMP SET FC 1 Tool Crimping 0.09 - 0.25 mm Individual contacts ToolCrimping0.09-0.25mmIndividualcontacts Harting 0999 系列 压接工具模具

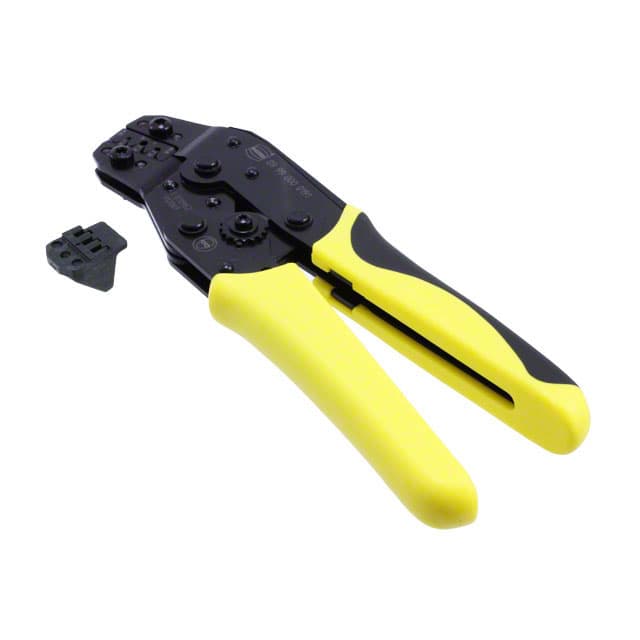

09990000191
HARTING
Crimpers CRIMP TOOL TYPES D E F FM MH Hand Tools CRIMP TOOL TYPES D E F FM MH GDS A CRIMPING TOOL FC 1-2-3 Harting for D, E, F, FM, HM GDSAcrimptool Tool: for crimping; terminals; 0.14÷1.5mm2; 26÷8AWG Harting D, E, F, FM, HM 压接工具 , 适用于0.14 → 1.5 mm² 线规格
09040323213
Harting Technology Group
Conn DIN 41612 F 32 POS 5.08mm Crimp ST Panel Mount DIN 41612 Connectors DIN D 32 F HOUSING DIN-POWER D032-FC-B Connector DIN-Power crimp 32-way f ConnectorDIN-Powercrimp32-wayf Plug; DIN 41612,type D; female; PIN:32; a+c; crimped; straight Harting 09 04 系列 32 路 5.08mm 节距, D型, 2 行 a/b 直向 DIN 41612 插座, 压接端接

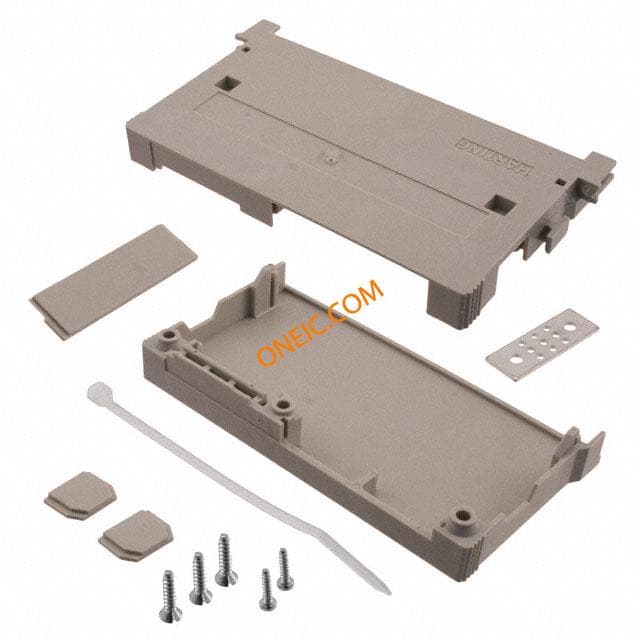

09050480501
Harting Technology Group
Connector Accessories 48 POS Female Shell Housing Metal DIN 41612 Connectors DIN-POWER SHELL HOUSING DIN-POWER SHELL HOUSING C Harting DIN 41612 系列 电源连接器 , DIN 轨安装

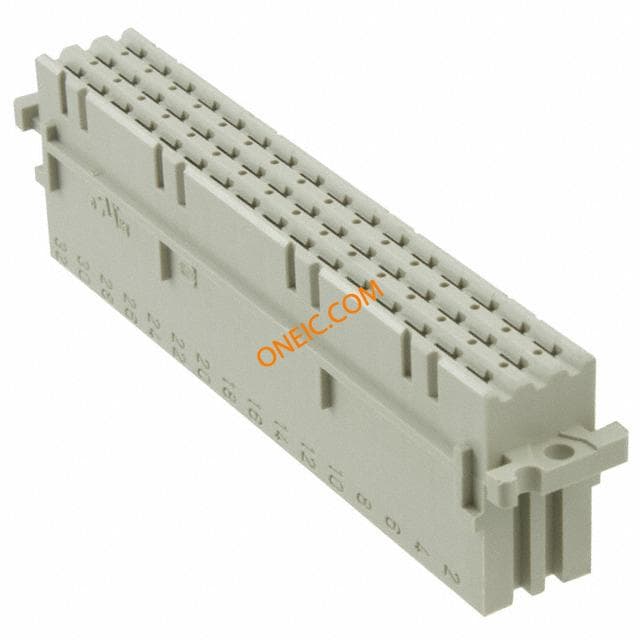

09062483201
