09062483201

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 48 POS 5.08mm Crimp ST Panel Mount DIN 41612 Connectors 48P 6A FEMALE CBLMNT ORDER CONTACTS SEP. DIN-POWER F048FC-B Connector DIN-Power crimp 48-way f Connector,Backplane;Female;HighProfile;RoHSCompliant Plug; DIN 41612,type F; female; w/o terminals; PIN:48; d+b+z; 6A Harting 09 06 系列 48 路 3.81 mm, 5.08 mm 节距, F型, 3 行直向 DIN 41612 插座, 压接端接
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Part # Aliases	06 09 09-06-248-3201 248 3201	Product Category	DIN 41612 Connectors
Standard Package	1	Factory Pack Quantity	100

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Standards	RoHSCompliant	Material Flammability Rating	UL94V-0

Electrical

Voltage Rating	125 V ac	Contact Resistance	20mΩ
Current Rating (Max)	6A	Connector - Voltage Input	w/o terminals

Mechanical

Depth	24.85	Pitch	0.200" (5.08mm)
Height	HighProfile	Weight	0.03 kg
Packaging	Bulk	Orientation	straight
Termination	Crimp	Weight (g):	22.40000
Mounting Type	Straight	Connector Type	Housing for Female Contacts
Contact Finish	Gold over Nickel	Mounting Style	for cable
Number of Rows	3	Connector Style	DIN 41612, Type F
Connector Usage	Receptacle	Contact Material	Copper Alloy
Housing Material	Thermoplastic	Length - Overall	93.9
Package Quantity	2	Termination Rows	a/b/c
Connector - Cable	plug	Termination Style	Crimp
Number of Contacts	48	Number of Positions	48 (Power)
Contact Material - Plating	gold plated	Material - Housing & Prism	thermoplastic
1st Connector Mounting Feature	d+b+z

Product Info

Spg	2	Note	Contacts Not Provided
Type	DIN 41612	Gender	F
Series	09 06	CAD Drawing	3D CAD Model
Number of Units	1

Environmental

Operating Temperature

+125°C

Similar Parts

09060008484

HARTING

DIN 41612 Connectors DIN-POWER CRIMP 1 FEM PL2 SNGL DIN-POWER CRIMP 1,F, PL2, EINZEL DIN-Power crimp femalel Contact; female; 0.09÷0.25mm2; crimped Harting 09 06 系列母银铜合金触点, 直 DIN 连接器触点

$1.9380

Details

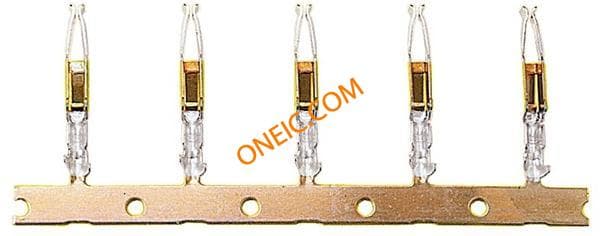

09060007482

Harting Technology Group

Contact SKT Crimp ST Cable Mount Reel DIN 41612 Connectors DIN-POWER CRIMP 3 FEM PL2 DIN-POWER CRIMP 3,F, PL2 DIN-Power crimp contact female DIN-Powercrimpcontactfemale Harting 09 06 系列母铜合金触点, 直 DIN 连接器触点

$4.5214

Details

09060006472

Harting Technology Group

Contact SKT Crimp ST Cable Mount Reel DIN 41612 Connectors DIN PWR CRMP 3 FEM PL1 DIN-POWER CRIMP 3,F, PL1 DIN-Power crimp contact female DIN-Powercrimpcontactfemale Harting 09 06 系列母铜合金触点, 直 DIN 连接器触点

$1.9968

Details

09060008481

Harting Technology Group

Contact SKT Crimp ST Cable Mount DIN 41612 Connectors CRIMP CONTACT FOR FEMALE TYP D E F DIN-POWER CRIMP 2,F, PL2, EINZEL DIN-Power crimp femalel Contact 0.14 to 0.56 mm Female IEC Approved Contact0.14to0.56mmFemaleIECApproved Harting 09 06 系列母锡铜合金触点, 直 DIN 连接器触点

$2.0468

Details

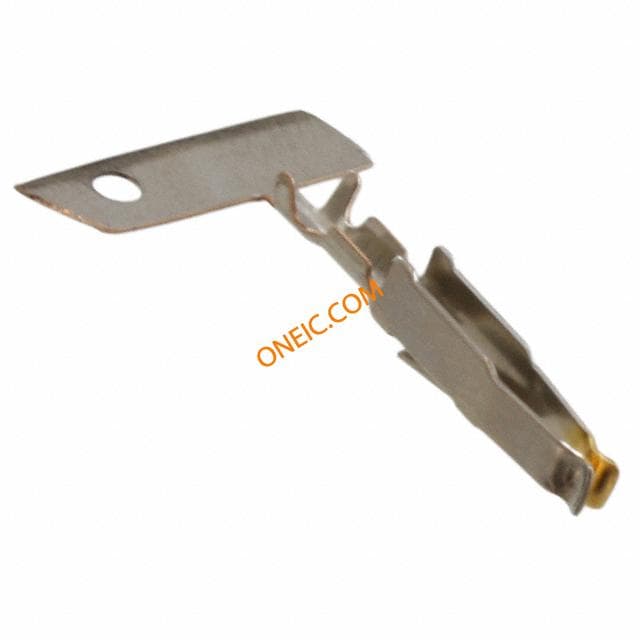

09060006471
