09150006224
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 7D FEM AWG 26-22 GOLD PLATED HAN D F CRIMP CONT AU 26-22AWG Connector; Female Contact Conn Contact F 1Power POS Crimp ST Cable Mount Connector,FemaleContact Contact; female; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Female Contact: Han D F Crimp Contact Au AWG 26 - 22 Harting Han Contacts 系列 母座 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器 |
| Category |
Business
| Part # Aliases | 000 09 09-15-000-6224 15 6224 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 250V | Voltage Rating | 250 V |
| Current Rating (Max) | 10 A | Current - Reverse Leakage @ Vr | 10A |
Mechanical
| Depth | 3.5 mm | Pitch | Not Required mm |
| Weight | 0.69 g | Packaging | Bulk |
| Wire Gauge | 22-26 AWG | Shield Type | No |
| Termination | Crimp | Weight (g): | 0.70000 |
| Contact Type | Power | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Rectangular |
| Contact Finish | Gold | Mounting Style | Cable |
| Insertion Force | Female | Material Finish | Gold |
| Contact Material | Copper Alloy | Housing Material | Not Required |
| Length - Overall | 21.5 mm | Package Quantity | 50 |
| Connector - Cable | contact | Termination Style | Crimp |
| Number of Contacts | Not Required | Contact Termination | Crimp |
| Plating - Thickness | 2µm | Contact Finish Thickness | 78.7µin (2.00µm) |
| Wire Gauge or Range - AWG | 26-22 | Wire Gauge or Range - mm2 | 0.14...0.37mm2 |
| Contact Material - Plating | nickel plated, gold plated | ||
Product Info
| Spg | 50 | Type | Contact |
| Gender | SKT | Series | Han Q |
| DELETED | Compliant | Product Type | Contacts |
| Accessory Type | 压接触点 | Adapter Series | Han D |
| Measuring Range | Han CD, Han Com, Han D, Han DD, Han DDD, Han Q, Han Quintax | Number of Units | 1 |
| For Use With/Related Products | 大负荷电源连接器 | ||
Similar Parts
09990000110
HARTING
Crimpers HAN CRIMP TOOL FOR C D E CONTACTS Crimp Tool Han Hand Tools HAN CRIMP TOOL FOR C D E CONTACTS HAN HAND CRIMP TOOL Parallel action crimp tool for HAN conn HartingCrimpTool Tool: for crimping; terminals; 0.14÷4mm2; 26÷12AWG; Series: Han Han Tools: Han Hand Crimp Tool Harting Crimp Contact 压接工具 , 适用于26 → 12 AWG 线规格
09990000001
HARTING
Crimpers HAN C CRIMP TOOL Crimping Tool For Contacts Han-Yellock Hand Tools HAN C CRIMP TOOL BUCHANAN CRIMPING TOOL. HAN Power Tool; Industrial; Crimp; Single; 6.3 mm PowerTool,Industrial;Crimp;Single;6.3mm Tool: for crimping; terminals; 0.14÷2.5mm2; Series: Han E Han Tools: Buchanan Crimping Tool Han Harting Han D 系列 压接工具 , 适用于Han D 触点
09990000021
HARTING
Crimpers HAN D CRIMP TOOL D/ Han Contacts 0.14-1/1.5/2.5mm Hand Tools HAN D CRIMP TOOL HAN CRIMP TOOL WITH LOCATOR Service crimp tool for HAN connector HandcrimpingToolf.HanD/HanE0,14-1/ Tool: for crimping; terminals; Series: Han D Han Tools: Han Crimp Tool with Locator Harting 压接工具 , 适用于0.5 → 2.5 mm² 线规格
09150043113
HARTING
Standard Circular Contacts HAN QUINTAX FEMALE Z CONTACT 3-9.5 mm Standard Circular Connectors HAN QUINTAX FEMALE Z CONTACT 3-9.5 mm HAN-QUINTAX CONT FEMALE 3-9.5MM Han-Quintaxcontactfemale,3-9.5mm Connector: HAN; female; Han Modular Quintax; PIN:4; shielded Han-Modular Contacts: Han 4 Quintax female zinc cable diameter Harting HAN Modular 系列 4 路 母座 触点
09140073101
Harting Technology Group
Han Cd - Modul Sc Female Inser Heavy Duty Power Connectors MOD FOR FEMALE CON HAN CD MODULE HAN CD MODULE CRIMP FEMALE Connector: HAN; module; female; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - F-c Harting HAN Modular 系列 1行 3针 插座 电源连接器外壳
09380423101
Harting Technology Group

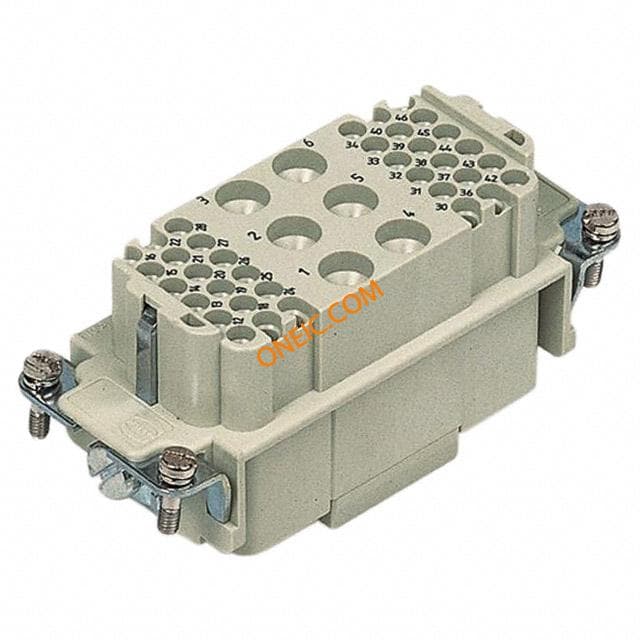

Conn Housing F 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN K 6/36 16B FEMAL ORDER CONTACTS SEP HAN K6/36 INSERT FEMALE HANK/36insertfemale FEMALEINSERT Han HSC Female Insert: Han K6/36 insert female Harting Han K 系列 43针 插座 电源连接器
09210403101
Harting Technology Group

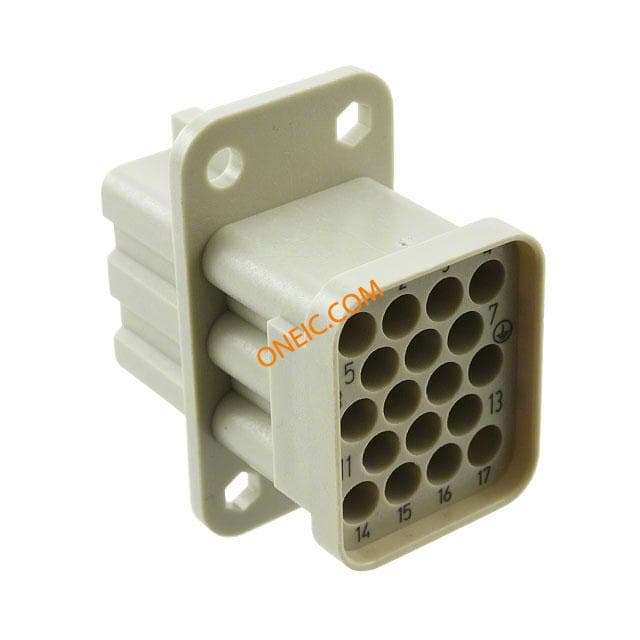

Conn Housing F 41 POS Crimp ST Heavy Duty Power Connectors HAN D 40P F CRIMP ORDER CONTACTS SEP HAN D 40 POS. F INSERT CRIMP Han(R) D 40P+E socket insert, 250Vac PowerConnectorInsert;Female;40 Connector: HAN; female; Han D; PIN:40; 40+PE; size 16B; UL94V-0 Han D Female Insert: Han D 40 Position F Insert Crimp Harting Han D 系列 4行 41针 插座 电源连接器
09320123101
Harting Technology Group

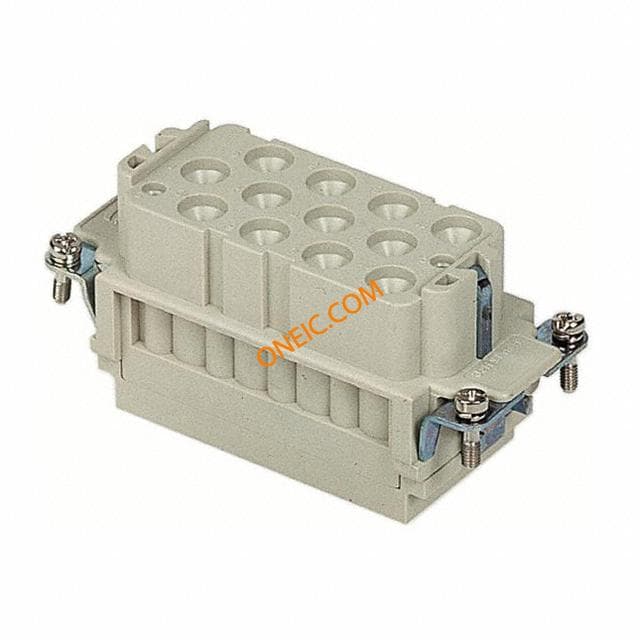

Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针 插座 电源连接器
09210073131
Harting Technology Group
Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN D 7P FEMALE CRMP ORDER CONTACTS SEP HAN D 7 POS. F INSERT CRIMP Han(R) D 7P+E socket insert, 250Vac PowerConnectorInsert;Female;7 Connector: HAN; female; Han D; PIN:8; 7+PE; size 3A; w/o terminals Han D Female Insert: Han D 7 Position F Insert Crimp Harting Han D 系列 3行 8针 插座 电源连接器
09120173101
Harting Technology Group
Conn Housing F 17Power/1Ground POS Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 FEMALE CRIMP TERM HANQ17/0FEMALEINSERTCRIMPTERM HANQ COMPACT MODULE FEMALE CRMP 17+PE 10A/250V Harting Han Q 系列 18针 插座 电源连接器 , 电缆安装
09140173101
Harting Technology Group

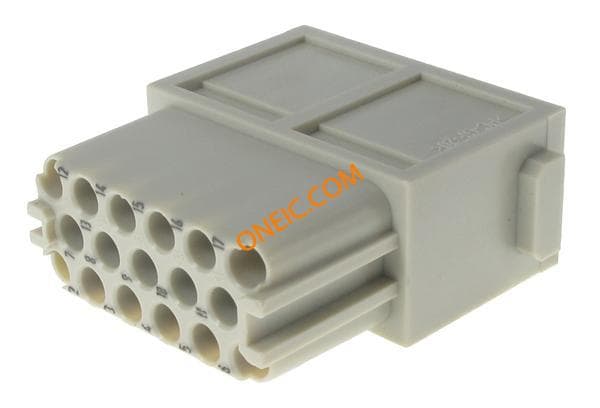

Conn Housing F 17 POS Crimp ST Heavy Duty Power Connectors HAN MOD 17 DDD FEM HAN DDD MODULE, CRIMP FEMALE RECTANGULAR HAN MOD, SOCKET, 17WAY CRIMP HANModular,Insert,DDDModule,Female,17contacts,160V,10A Connector: HAN; module; female; Han Modular DDD; PIN:17; 10A; 160V Han-Modular Modules: Han Modular 17 DDD Module female Harting HAN Modular 系列 3 行 17 路 母座 RJ45-Rangierfeld , 额定电流 10A/ 160 V
09210643101
Harting Technology Group
Conn Housing F 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P F CRIMP ORDER CONTACTS SEP HAN D 64 POS. F INSERT CRIMP PowerConnectorInsert;Female;64 Connector: HAN; female; Han D; PIN:64; 64+PE; size 24B; UL94V-0 Han D Female Insert: Han D 64 Position F Insert Crimp
09360083101
Harting Technology Group
Conn Housing F 8 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN U 8P FEMALE INSERT CRIMP HAN 8D FEMALE INSERT CRIMP Han 8D(U) 8P female insert,10A 50Vac HAN8DFEMALEINSERTCRIMP Connector: HAN; female; Han D; PIN:8; size 3A; w/o terminals; 50V Han D Female Insert: Han 8D Female Insert Crimp Harting Han D 系列 8针 插座 电源连接器
09150073101
Harting
R 15 07 POS. F INSERT CRIMP Heavy Duty Power Connectors FEMALE INSERT PLSTIC CRIMP TERM CONN HSG INSERT 8POS SKT R1507POS.FINSERTCRIMP Harting R 15 系列 7 路 母座 触点 , 额定电流 10A/ 250 V
09210253101
Harting
HAN D 25 POS. F INSERT CRIMP Heavy Duty Power Connectors HAN D 25P F CRIMP ORDER CONTACTS SEP Han(R) D 25P+E socket insert, 250Vac PowerConnectorInsert;Female;25 Connector: HAN; female; Han D; PIN:25; 25+PE; size 16A; 250V Han D Female Insert: Han D 25 Position F Insert Crimp Harting Han D 系列 3行 26针 插座 电源连接器
09120063141
Harting

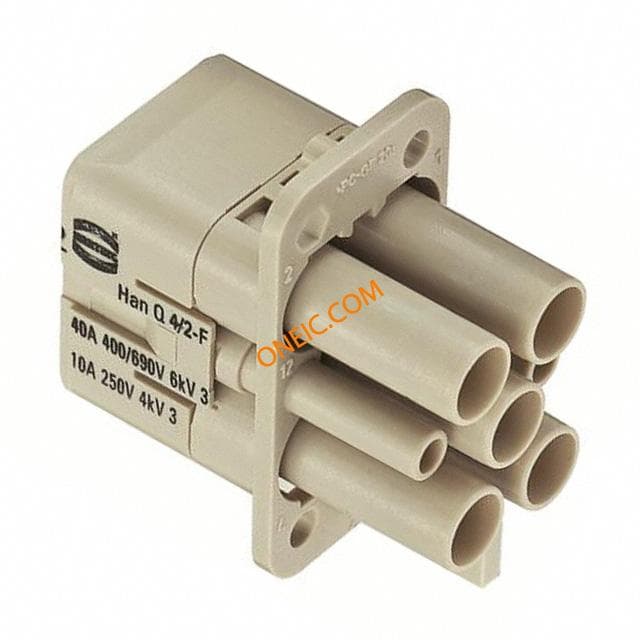

HAN Q 4/2 FEMALE CRIMP TERM Heavy Duty Power Connectors FEMALE INSERT HAN Q4/2 CRIMP TERM FEMALEINSERTHANQ4/2 Han Q Female Insert: Han Q 4/2 Female Insert Crimp Term Harting Han Q 系列 3行 7针 插座 电源连接器
09380323101
Harting

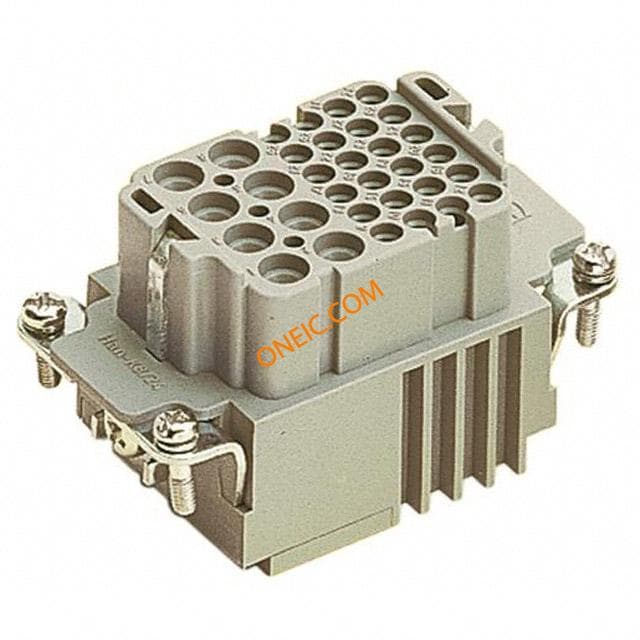

HAN K 8/24 POS. F INSERT CRIMP Heavy Duty Power Connectors FEMALE INSERT HAN 10B CRIMP TERM Han-Com(R) K 8/24P+E crimp socket insert HANK8/24POS.FINSERTCRIMP Connector: HAN; female; Han Com; PIN:32(8+24); size 10B Han HSC Female Insert: Han K 8/24 Position F Insert Crimp Harting Han Com, Han HSC, Han K 系列 32针 插座 电源连接器
