09380323101
| Manufacturer | |
| Description | HAN K 8/24 POS. F INSERT CRIMP Heavy Duty Power Connectors FEMALE INSERT HAN 10B CRIMP TERM Han-Com(R) K 8/24P+E crimp socket insert HANK8/24POS.FINSERTCRIMP Connector: HAN; female; Han Com; PIN:32(8+24); size 10B Han HSC Female Insert: Han K 8/24 Position F Insert Crimp Harting Han Com, Han HSC, Han K 系列 32针 插座 电源连接器 |
| Category |
Business
| Part # Aliases | 032 09 09-38-032-3101 3101 38 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 HB |
Electrical
| Voltage Rating | 400 V | Current Rating (Max) | 16A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Size | 10B | Color | Gray |
| Weight | 0.06 kg | Packaging | Bulk |
| Orientation | 直 | Weight (g): | 66.75000 |
| Contact Type | Han®, Han® D | Connector Type | Insert without Contacts |
| Mounting Style | Straight | Package / Case | size 10B |
| Insertion Force | Female | Housing Material | Polyamide (PA), Nylon |
| Size / Dimension | 10B | Termination Style | Crimp |
| Number of Contacts | 32 | Number of Positions | 8+24+Ground |
Product Info
| Type | CONNECTORS | Gender | Female |
| Series | Han C | Product Type | Inserts |
| Adapter Series | Han Com | Number of Units | 1 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
19300101541
Harting Technology Group
Connector Accessories Hood Heavy Duty Power Connectors METAL HOOD HAN 10B 1 LVR LCKING HAN 10B-GS-R-M25 HAN 10B HOOD SIDE ENTRY LC 2 PEGS M25 HAN10BHOODSIDEENTRYLC2PEGSM25 Enclosure: for Han connectors; Han; size 10B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 2 Reels M25 Harting Han B 系列 侧入 电源连接器
09300100301
Harting Technology Group
Connector Accessories Housing Bulkhead Mounting Heavy Duty Power Connectors HAN 10B BULKHEAD MNT 2 LEVERS METAL HAN B BASE PANEL 2 LEVERS Low panel mnt hsg.,10B for 2 lever Housing,PowerConnector;Metal;TwoLeversHousing;93mmLx35mmW Enclosure: for Han connectors; Han; size 10B; with double latch Han B Housings: Han B Base Panel 2 levers Harting Han B 系列 电源连接器外壳

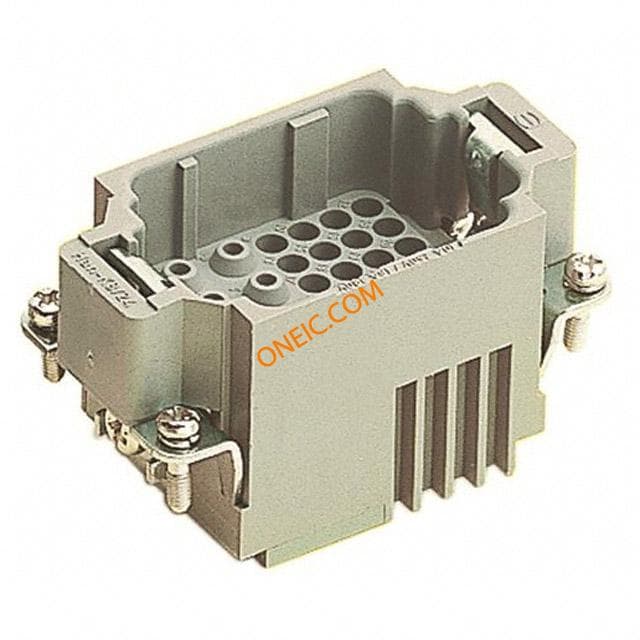

09380323001
