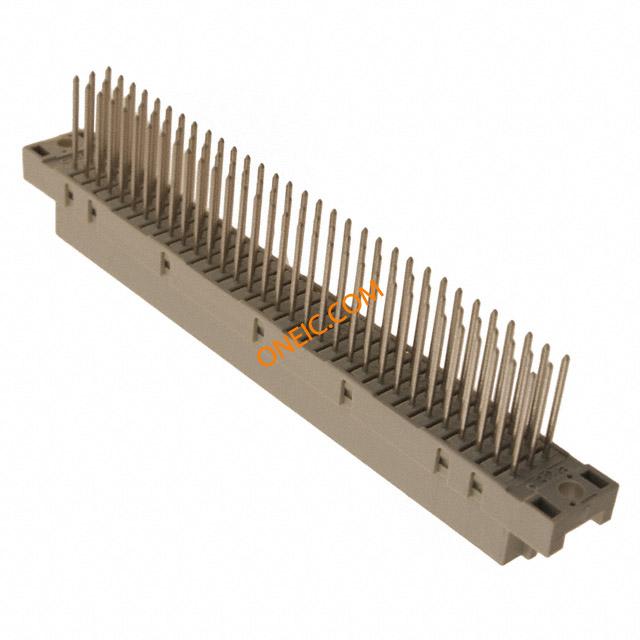

09032966821
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Wire Wrap ST Thru-Hole DIN 41612 Connectors 96P 2A FEMALE STRT DIN-SIGNAL C096FW-13,0C1-2 96 way 3 row DIN41612 socket,13mm DIN 41612 PCB CONNECTOR RECEPTACLE 96WAY DIN41612,Receptacle,TypeC,96Poles,Straight,WrapPost Plug; DIN 41612,type C; female; PIN:96; a+b+c; THT; straight; 2A Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 绕线端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-296-6821 296 6821 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Tariff No | 85366910 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.6 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Weight | 0.018 |
| Packaging | Bulk | Shell Size | C |
| Orientation | straight | Termination | Wire Wrap |
| Lead Spacing | len. 13mm | Length - Pin | 13mm |
| Length - Tail | 13 mm | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Palladium Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 95mm | Package Quantity | 10 |
| Primary Material | Industrial | Connector - Cable | plug |
| Pin Hole Diameter | 2.54mm | Termination Style | Wire Wrap |
| Number of Contacts | 96 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+b+c | ||
Product Info
| Spg | 10 | Type | DIN 41612 |
| Style | C | Gender | F |
| Series | :- | Features | Backplane |
| CAD Drawing | 3D CAD Model | Number of Units | 1 |
| Number of Positions Loaded | All | ||
Environmental
| Level, Class | 2 | Mechanical Life | 400cycles |
| Operating Temperature | -55...125°C | ||
