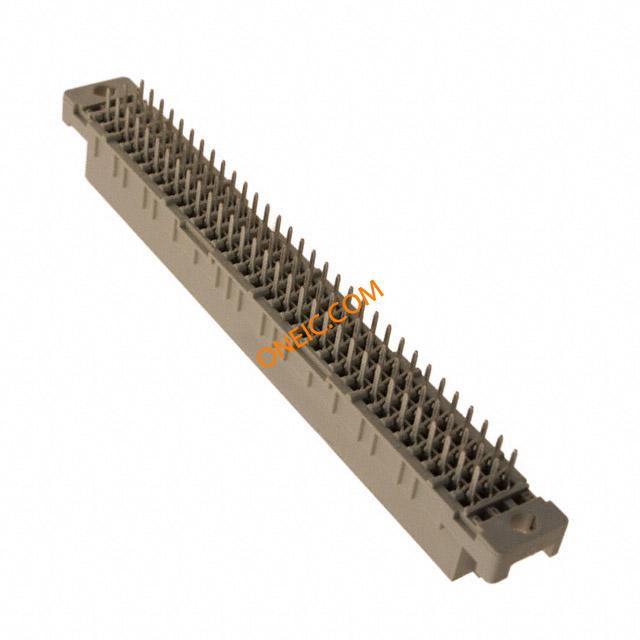

09032962825
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 96P TYPE C FEMALE 3 ROW W/CONTACTS DIN-SIGNAL C096FS-4,5C1-1 96 way 3 row DIN41612 socket,4mm Harting 96 路 2.54mm 节距, C型 C1等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-296-2825 2825 296 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.5 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Weight (g): | 15.48000 | Mounting Type | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Length - Overall | 94 |
| Termination Rows | 焊接 | Termination Style | Solder |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | C |
| Gender | F | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C1 | Level, Class | 1 |
| Operating Temperature | - 55 C to + 125 C | ||
