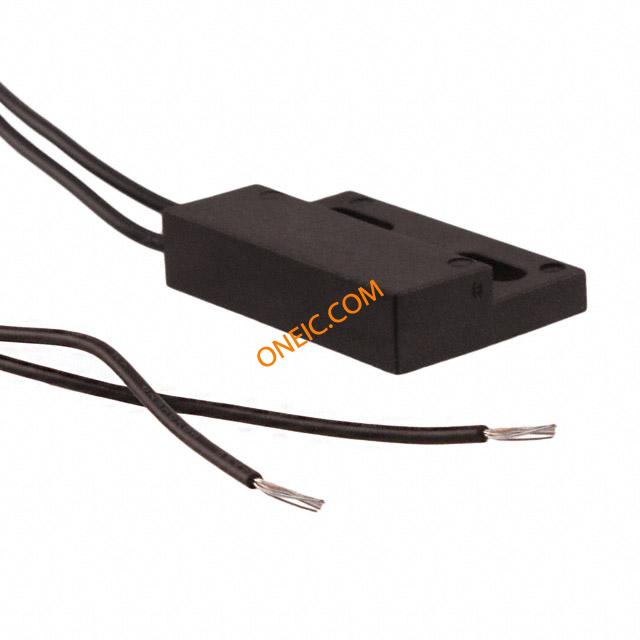

59145-010
| Manufacturer | |
| Description | Proximity Sensor Magnetic 2-Pin SENSOR MAG SPST/NO FLANGE 200V Proximity Sensors PROXIMITY SENSOR Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.2 Amps Max Switching Voltage: 200 VDC Activate Distance: .453" (11.5mm) Termination: Leads Reed sensor, 59145-010, Hamlin |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 39 Days | Other Names | 59145010 |
| Subcategory | Proximity Sensor | Standard Package | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| Output Type | SPST-NO | Power - Max | :10W |
| Sensor Type | Magnetic | Sensing Range | :20.32mm |
| Number of Poles | :1 | Current - Output | :500mA |
| Voltage - Supply | :200V | Contact Resistance | :0.2ohm |
| Capacitance - Input | :0.3pF | Voltage - Breakover | :250VDC |
| Insulation Resistance | :10000Mohm | Voltage - Switching DC | :200 |
| Current - DC Forward (If) (Max) | :0.5A | ||
Mechanical
| Depth | :28.57mm | Width | :14.28mm |
| Length | :9.53mm | Weight | 0.00591 |
| Mounting Type | Screw | Terminal Type | Cable |
| Package / Case | Flange Mount | Actuator Material | Magnet |
| Termination Style | Wire Leads | Number of Positions | 2 |
| Contact Layout, Typical | :SPST-NO | ||
Product Info
| Type | Magnetic | Function | Switch |
| Must Release | 20.32mm | Module/Board Type | Module |
| Printed Circuit Board | 2 | ||
Environmental
| Must Operate | 5.71mm | Operating Temperature | -40C to 105C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
57145-000
Hamlin
Actuator MAGNET FLANGE MOUNT FOR 59145 Proximity Sensors Actuators MAGNET Actuators Permanent magnet, 57145-000, Hamlin
$5.6440
Details
59145-010
Hamlin
Proximity Sensor Magnetic 2-Pin SENSOR MAG SPST/NO FLANGE 200V Proximity Sensors PROXIMITY SENSOR Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.2 Amps Max Switching Voltage: 200 VDC Activate Distance: .453" (11.5mm) Termination: Leads Reed sensor, 59145-010, Hamlin
$28.9027
Details

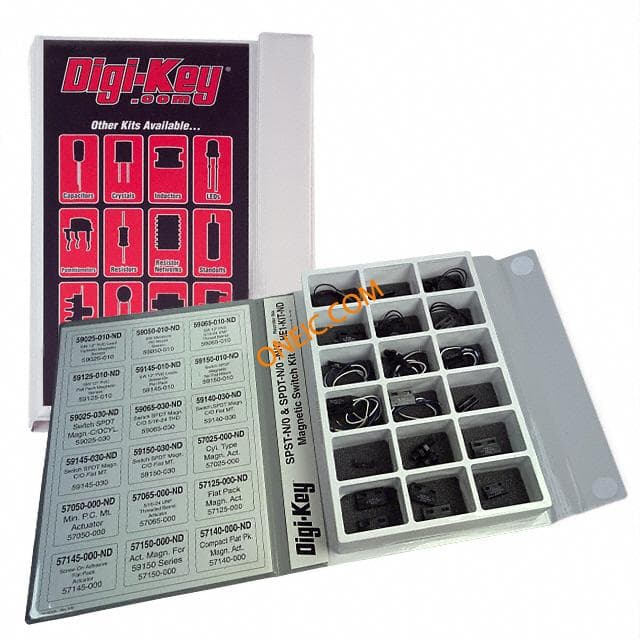

Q112118
