点击放大查看

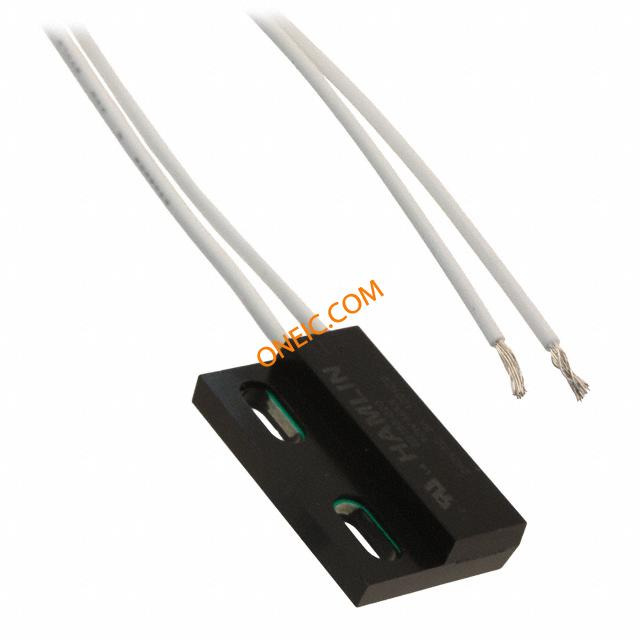

59135-020
| Manufacturer | |
| Description | Proximity Sensor Magnetic 2-Pin SENSOR MAG SPST/NO HV FLNGE 300V Proximity Sensors SENSOR, MAGNETIC, SPST-NO, 300VDC, 19MM Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.5 Amps Max Switching Voltage: 300 VDC Activate Distance: .709" (18.0mm) Termination: Leads Reed sensor, 59135-020, Hamlin |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 73 Days | Other Names | 59135020 |
| Subcategory | Proximity Sensor | Standard Package | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 90318038 | Rad Hardened | No |
Electrical
| Output Type | SPST-NO | Sensor Type | Magnetic |
| Sensing Range | :19mm | Current - Output | :500mA |
Mechanical
| Width | 19.05 | Weight | 0.01 |
| Lead Style | Cable | Mounting Type | Screw |
| Terminal Type | Cable | Mounting Style | :Panel Mount |
| Package / Case | Flange Mount | Length - Overall | 28.57 |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 2 | Shell Size - Insert | 6.35 |
Product Info
| Type | Magnetic | Function | Switch |
| Must Release | 29.21mm | Module/Board Type | Module |
| Printed Circuit Board | 2 | ||
Environmental
| Must Operate | 8.89mm | Operating Temperature | -40C to 150C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
