76SB08ST
| Manufacturer | |
| Description | Switch DIP ON OFF SPST 8 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SW DIP EXT RCKR SEALED 8POS 30V DIP Switch SPST PCB Rocker, 0.15 A @ 30 V dc, 8-Way, -40 to +85°C ROCKER SWITCH, DIL, 8WAY Switch,Thru-HoleDip,RaisedRocker,8Positions,TapeSeal |
| Category |
Business
| Other Names | GH7176 | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365019 |
| Rad Hardened | No | ||
Electrical
| Circuit | SPST | Capacitance | :5pF |
| Voltage Rating | 30 V | Number of Poles | 1 |
| Switch Function | ON OFF | Contact Resistance | :30mohm |
| Dielectric Strength | :500V | Current Rating (Max) | 0.15@30VDC A |
| Current - Max/Contact | :5A | Insulation Resistance | :5000Mohm |
| Switch Function/Rating | ON OFF | Contact Rating (Current) | 0.15 A @ 30 V dc |
| Contact Rating @ Voltage | 0.15A @ 30VDC | Voltage - DC Reverse (Vr) (Max) | 30V |
Mechanical
| Seal | Tape(Polyester Film)/Base | Depth | 9.65 mm |
| Pitch | 2.5 mm | Width | :9.5mm |
| Height | 8 mm | Length | :7.5mm |
| Weight | 0.045 | Material | :Moulded thermoplastic polyester |
| Packaging | Tube | Orientation | Top Actuated |
| Termination | PCBPins | Contact Form | SPST |
| Lead Spacing | :2.54mm | Pitch - Post | :7.62mm |
| Actuator Type | Rocker | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Actuator Level | Raised |
| Contact Finish | Gold/Nickel Barrier | Mounting Style | Through Hole |
| Package / Case | DIP | Material Finish | :- |
| Contact Material | Copper Alloy | Length - Overall | 22.4 mm |
| Pin Hole Diameter | :DIL | Termination Style | PC Pins |
| Length - Lead Wire | :3.96mm | Actuator Style/Size | Raised Rocker |
| Number of Positions | 8 | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPST | 1st Connector Mounting Type | :Through Hole |
Product Info
| Type | Rocker | Series | :76 |
| DELETED | Compliant | Washable | Yes |
| Switch Type | :DIP | Electrical Life | 2000/Switch |
| Number of Positions (Convert From) | 8 | ||
Environmental
| Mechanical Life | 2000Operations | Switching Cycles | :35000 |
| Operating Temperature | -40 to 85 °C | ||
Similar Parts

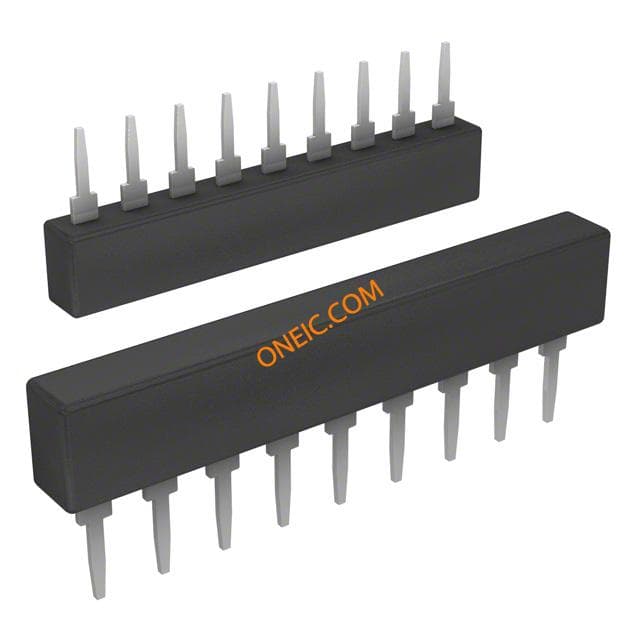

4609X-101-102LF
