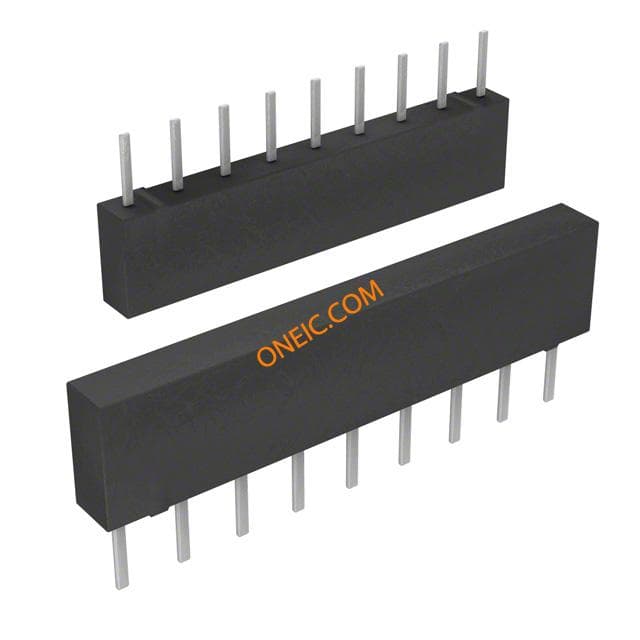

4609X-101-472LF
| Manufacturer | |
| Description | Res Thick Film NET 4.7K Ohm 2% 1.13W ±100ppm/°C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk RES ARRAY 4.7K OHM 8 RES 9SIP 8-bussed thick film resistor,4K7 1.13W Resistor Networks & Arrays 9pins 4.7Kohms Bussed Res Thick Film NET 4.7K Ohm 2% 1.13W �100ppm/C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk RESISTOR, NETWORK, 9 PIN, 4K7, 2% Resistor;4.7Kilohms;1.3W;2%;100V(Max.);100ppm/DegC Resistor network: X; 4.7kΩ; No.of resistors:8; THT; 200mW; ±2% Resistor network SIL 4.7 kOhm ± 2 %, 4609X-101-472LF, Bourns Bourns 4.7kΩ ±2% 8个电阻 排阻, 总线, 1.13W, SIP 封装 4600X |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 4609X101472LF | Product Category | Resistor Networks & Arrays |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85332100 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Circuit | BussedNetwork | Tolerance | 2% |
| Resistance | 4.7 KOhm | Power - Max | 0.2W |
| Power - Rated | 1.13 W | Resistor Type | one pin of each resistor connected to common terminal |
| Voltage Rating | :100V | Circuit Pattern | BUS |
| Resistor Values | 4.7 kOhms | Voltage - Rated | 100V |
| Power Per Element | 200mW | Resistance (Ohms) | 4.7k |
| Number of Elements | :8 | Power - Peak Pulse | 1/5 W |
| Number of Resistors | 8 | Resistance Tolerance | :± 2% |
| Resistor - Base (R1) | :Radial Leaded | Insulation Resistance | :10Mohm |
Mechanical
| Depth | 2.49mm | Width | 3.43 mm |
| Height | 0.200" (5.08mm) | Length | 22.81mm |
| Weight | 0.038 | Base Type | :SIP |
| Packaging | Bulk | Lead Spacing | 2.54 mm |
| Pitch - Post | 2.54 mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 9 |
| Package / Case | Conformal | Package Cooled | SIP |
| Length - Overall | 22.81 mm | Package Quantity | 200 |
| Size / Dimension | 0.898" L x 0.098" W (22.81mm x 2.49mm) | Pitch - Connector | 2.54mm |
| Termination Style | Pin | Length - Lead Wire | :3.43mm |
| Number of Contacts | 9 | Resistive Material | :Thick Film Array |
| Number of Positions | 9 | Supplier Device Package | 9-SIP |
Product Info
| Spg | 200 | Type | Network |
| Series | 4600X | DELETED | Compliant |
| Technology | Thick Film | Circuit Type | Bussed |
| Failure Rate | Not Required | Manufacturer | 4600XSeries |
| Product Type | Networks | Number of Units | 1 |
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100 ppm/°C |
| Temperature Coefficient (Typ) | :50ppm/°C | ||
