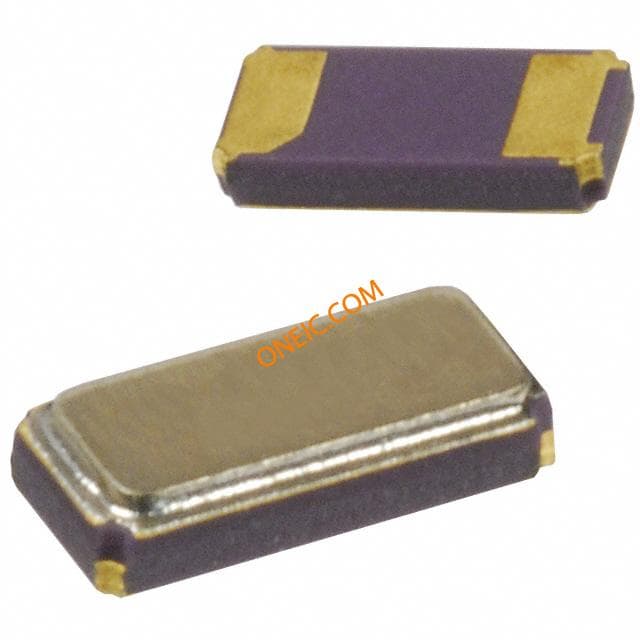

FX135A-327
| Manufacturer | |
| Description | Crystal 0.032768MHz 9pF 2-Pin SMD T/R CRYSTAL 32.768KHZ 12.5PF SMD FX135A-327, Crystal 32.768kHz, ±20ppm, 2-Pin SMD, 3.2 x 1.5 x 0.9mm Crystals 32.768KHz 12.5pF 3.2 x 1.5mm Crystal 0.032768MHz 12.5pF 2-Pin SMD T/R TUNING FORK, 32.768 kHz, 12.5PF, SMD, FULL REEL TUNING FORK, 32.768 kHz, 12.5PF, SMD CRYSTAL, 32.768KHZ, 12.5PF, SMD FX135A-327 Fox Electronics , 32.768kHz 晶体, ±20ppm, 2针 表面安装器件 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 631-1002-1 | Product Category | Crystals |
| Standard Package | Bulk | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85416000 | ||
Electrical
| Core Type | :- | Frequency | 32.768kHz |
| Tolerance | 20 PPM | Operating Mode | Fundamental |
| Load Capacitance | 12.5 pF | Frequency Stability | - 0.045 PPM |
| Frequency Tolerance | ±20 ppm | Resistance - Series | 70000 Ohm |
| Frequency - Operating | 0.032768 MHz | ESR (Equivalent Series Resistance) | 70 kOhm |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Depth | 1.5 mm | Width | 1.5mm |
| Height | 0.035" (0.90mm) | Length | 3.2mm |
| Weight | 0 | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :2 | Package / Case | 2SMD |
| Package Cooled | SMD | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.2 mm | Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| 1st Connector Mounting Type | :SMD | ||
Product Info
| Type | Crystal | Series | FX135 |
Environmental
| Operating Temperature | 85 °C | ||
