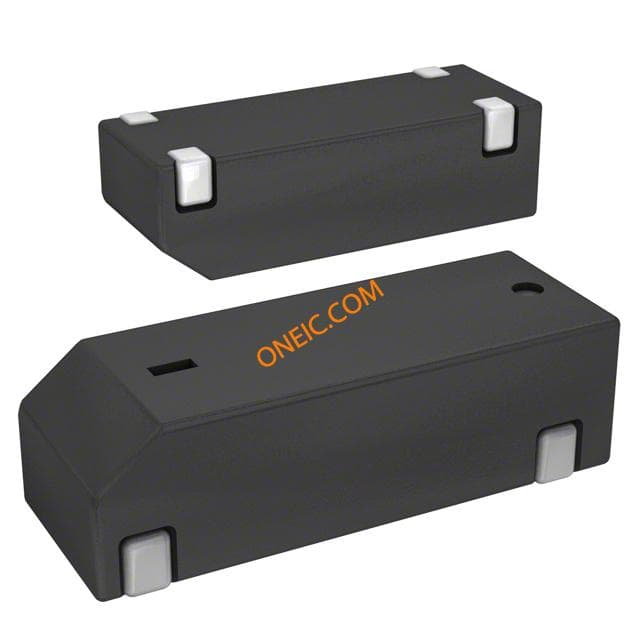

FPXLF0368-20
| Manufacturer | |
| Description | Crystal 3.6864MHz 20pF 4-Pin SMD T/R CRYSTAL 3.6864MHZ 20PF SMD FPXLF0368-20, Crystal 3.69MHz, ±50ppm, 4-Pin SMD, 12.5 x 4.6 x 3.7mm Crystals 3.6864MHz 20pF Crystal 3.6864MHz ?50ppm (Tol) ?100ppm (Stability) 20pF FUND 200Ohm 4-Pin SMD T/R CRYSTAL, 3.6864MHz, 20PF, SMD, FULL REEL CRYSTAL, 3.6864MHz, 20PF, SMD CRYSTAL, 3.6864MHZ, 20PF, SMD CRYSTAL;3.686400MHZ;+50PPM@25DEGC;20PF;200OHMS;-10DEGC;DEGC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 631-1208-1 | Product Category | Crystals |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85416000 | ||
Electrical
| ESR | 200Ohms | Core Type | :- |
| Frequency | 3.6864MHz | Tolerance | 50 PPM |
| Operating Mode | Fundamental | Oscillator Type | Fundamental |
| Load Capacitance | 20 pF | Frequency Stability | ±100 ppm |
| Frequency Tolerance | ±50 ppm | Resistance - Series | 200 Ohm |
| Frequency - Operating | 3.6864 MHz | ESR (Equivalent Series Resistance) | 200 Ohm |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 4.6 mm | Width | 4.6mm |
| Height | 0.146" (3.70mm) | Length | 12.5mm |
| Weight | 0 | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :4 | Package / Case | 4SMD |
| Package Cooled | SMD | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 12.5 mm | Size / Dimension | 0.492" L x 0.180" W (12.50mm x 4.60mm) |
| Termination Style | SMD/SMT | Number of Positions | 4 |
| 1st Connector Mounting Type | :SMD | ||
Product Info
| Type | Crystal | Series | FPX |
Environmental
| Operating Temperature | 70 °C | Usable Temperature Range | -20to+70°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
FPXLF0368-20
fox
Crystal 3.6864MHz 20pF 4-Pin SMD T/R CRYSTAL 3.6864MHZ 20PF SMD FPXLF0368-20, Crystal 3.69MHz, ±50ppm, 4-Pin SMD, 12.5 x 4.6 x 3.7mm Crystals 3.6864MHz 20pF Crystal 3.6864MHz ?50ppm (Tol) ?100ppm (Stability) 20pF FUND 200Ohm 4-Pin SMD T/R CRYSTAL, 3.6864MHz, 20PF, SMD, FULL REEL CRYSTAL, 3.6864MHz, 20PF, SMD CRYSTAL, 3.6864MHZ, 20PF, SMD CRYSTAL;3.686400MHZ;+50PPM@25DEGC;20PF;200OHMS;-10DEGC;DEGC
$0.4284
Details
3209885-M
MULTICORE (SOLDER)
SOLDER PASTE, 95.5/3.5/0.7, 217DEG, 500G
$130.7477
Details

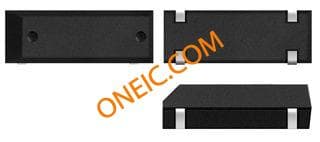

CM309S3.6864MABJ-UT
