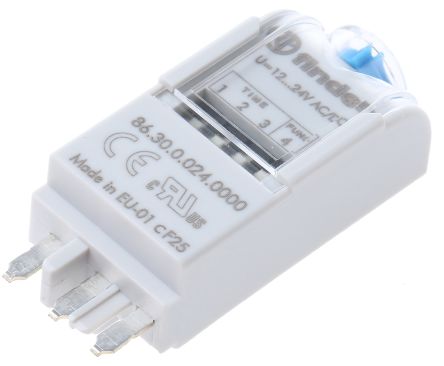

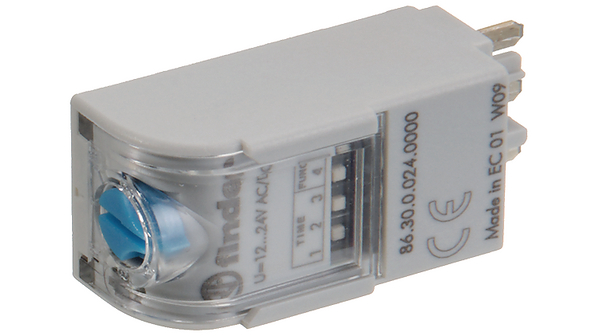

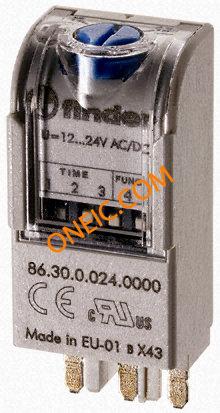

86.30.0.024.0000
| Manufacturer | |
| Description | DIN Rail Panel Mount Interface Relay Module TIMER, MULTIFUNCTION Time module 12...24 VAC/DC, 86.30.0.024.0000, Finder Plug In 接口继电器模块, 26.4V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
| Approval Agency | :CE, GOST | ||
Electrical
| Accuracy | :5% | Power - Rated | :150mW |
| Voltage - Core | :250V | Voltage Rating | 26.4V ac |
| Delay Time - ON | :0.05s | Delay to 1st Tap | :0.05s to 100h |
| Voltage - Supply | :24VAC | Resistance - Input | 520Ω |
| Current - Max/Contact | :8A | Voltage - Input (Max) | :24V |
| Voltage - Rated AC (Phase to Phase) | :24VAC | ||
Mechanical
| Depth | 15.5mm | Width | :15.5mm |
| Height | 31mm | Length | 11.3mm |
| Weight | 0.015 | Mounting Type | DIN Rail Panel Mount |
| Contact Layout, Typical | :SPST-NO | ||
Product Info
| Type | :A1, D1 | Series | :86 |
| Function | :Bi-function | Other Specifications | :100h |
| Timing Adjustment Method | :Screwdriver Slot | ||
Environmental
| NEMA Frame Size | :IP20 | Operating Range | :0.05s - 100h |
| Operating Temperature | +70°C | ||
