点击放大查看

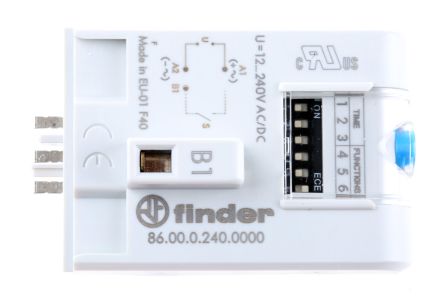

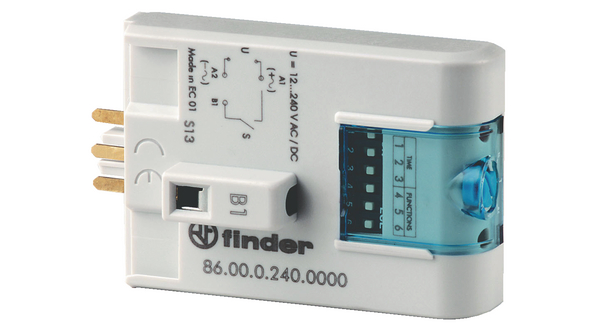

86.00.0.240.0000
| Manufacturer | |
| Description | DIN Rail Panel Mount Interface Relay Module TIMER, MULTIFUNCTION Time module for socket 90.03 + 92.03, 86.00.0.240.0000, Finder Plug In 接口继电器模块, 264V ac/dc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Accuracy | :5% | Power - Rated | :1.2W |
| Voltage - Core | :250V | Voltage Rating | 264V ac/dc |
| Delay Time - ON | :0.05s | Delay to 1st Tap | :0.05s to 100h |
| Voltage - Supply | :240V | Resistance - Input | 8500Ω |
| Current - Switching | :8A | Current Rating (Max) | :8A |
| Current - Max/Contact | :8A | Voltage - Input (Max) | :240V |
Mechanical
| Depth | 15.5mm | Width | :38mm |
| Height | 31mm | Length | 11.3mm |
| Weight | 0.026 | Mounting Type | DIN Rail Panel Mount |
| Contact Layout, Typical | :SPST | ||
Product Info
| Type | :A1, D1, SW, BE, CE, DE, EE and FE | Series | :86 |
| Function | :Multifunction | Adjustment Type | :Pushbutton |
| Other Specifications | :100h | Timing Adjustment Method | :Screwdriver Slot |
Environmental
| NEMA Frame Size | :IP20 | Operating Temperature | +70°C |
