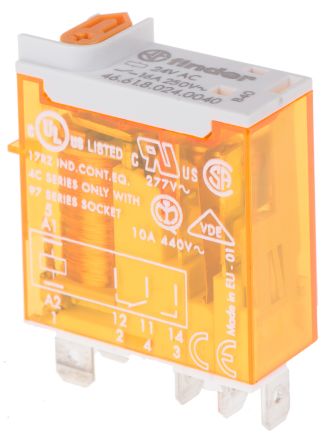

46.61.8.024.0040
| Manufacturer | |
| Description | Plug in relay w/ flag, 16A, 24Vac, SPDT RELAY, PCB, 16A, SPDT, 24VAC Relay: electromagnetic; SPDT; 16A/250VAC; 16A/30VDC; 25A; 320Ω Industrial relay 24 VAC 320 Ohm 1.2 VA, 46.61.8.024.0040, Finder Finder T50A1 单刀双掷 插入式 非闭锁继电器, 16 A, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (16-Dec-2013) | Tariff No | 85364900 |
Electrical
| Coil Type | :AC | Coil Power | 1.2VA |
| Range deg/s | :FINDER - 46 Series | Coil Current | :45mA |
| Isolation Type | 6kV | Coil Resistance | 320 Ω |
| Current - Output | :25A | Voltage - Supply | 24V ac |
| Switching Voltage | 250V ac | Current - Switching | 25 A |
| Power - Output Surge | 4000 VA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :25A | Voltage - Input (Min) | 19.2V AC |
| Power - Average Forward | :500mW | AC contacts rating (at resistance load) | 16 A / 250 VAC |
| DC contacts rating (at resistance load) | 16 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 12.4mm | Width | :12.4mm |
| Height | 32.8mm | Length | 29mm |
| Weight | 0.018 | Size - Body | 29 x 12.4 x 32.8mm |
| Height (Max) | :32.8mm | Pitch - Post | 5.2mm |
| Mounting Type | Plug In | Terminal Type | Tab |
| Contact Material | Silver Nickel | Package Quantity | 10 |
| Size / Dimension | see | Contact Layout, Typical | SPDT |
Product Info
| Spg | 10 | Relay Type | :Miniature |
| Relay Variant | miniature, industrial | Number of Units | 1 |
| Output Configuration | see | Application Specifics | Compact |
| Contacts Configuration | SPDT | ||
Environmental
| Mechanical Life | 1000000cycles | Operating Temperature | +70°C |
Similar Parts
095.18
Finder
Busbar Jumper Link For Use With 40 Series, 44 Series, 46 Series, 48 Series, 4C Series, 86 Series BUSBAR, 8WAY Connection bridge; Application:95.03,95.05 8-way jumper link for 48 Series / 95.03 & 95.05 sockets (blue) Cradle bridge 8-way for terminals A1 or A2, 095.18, Finder
$25.8291
Details

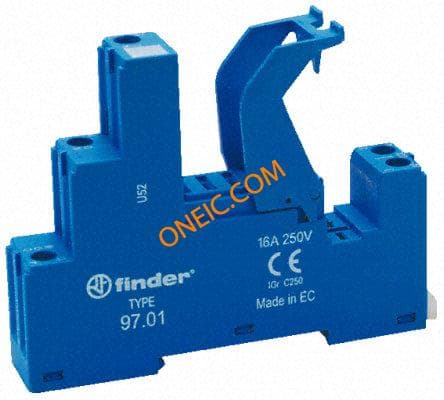

97.01SPA
Finder
Relay Socket For Use With 46.61 SOCKET, DIN/SURFACE, 4661 SERIES DINRAIL/SURFACESOCKET Relay socket, Poles 1, DIN rail 35 mm, 97.01SPA, Finder 继电器插座, 适用于46.61
$22.3440
Details

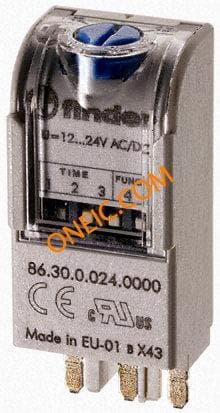

86.30.0.024.0000
