XR4151CP-F
| Manufacturer | |
| Description | Voltage to Frequency & Frequency to Voltage V-22V 1.0Hz-100kHz temp 0C to 70C VFC 8-Pin PDIP IC CONV VF/FV 8PDIP XR4151CP-F, Voltage to Frequency Converter ±0.05%FSR, 8-Pin PDIP IC, CONVERTER, VOLTAGE, FREQ, 8PDIP |
| Category |
Business
| Product Category | Voltage to Frequency & Frequency to Voltage | Standard Package | 50 |
| Factory Pack Quantity | 50 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423245 | Rad Hardened | No |
Electrical
| Frequency | :100kHz | Linearity | ±0.05%FSR(Typ) |
| Full Scale | :1Hz to 100kHz | Power - Input | Single |
| Converter Type | VFC | Frequency - Max | 1 Hz to 100 kHz |
| Voltage - Supply | 22 V | Power Supply Type | Single |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Width | 7.11mm | Height | 4.95mm |
| Length | 10.92mm | Weight | 0.000833 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | PDIP-8 |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | PDIP | Size / Dimension | 10.92 x 7.11 x 4.95mm |
| Number of Positions | 8 | ||
Product Info
| Series | * | ||
Environmental
| Operating Temperature | + 70 C | Operating Temperature - Junction | 70C |
Documents & Media
Similar Parts
XR4151CP-F
Exar
Voltage to Frequency & Frequency to Voltage V-22V 1.0Hz-100kHz temp 0C to 70C VFC 8-Pin PDIP IC CONV VF/FV 8PDIP XR4151CP-F, Voltage to Frequency Converter ±0.05%FSR, 8-Pin PDIP IC, CONVERTER, VOLTAGE, FREQ, 8PDIP
110-13-308-41-001000
Mill-Max Manufacturing Corp.
IC SOCKET 8 PIN .300 GOLD Socket; DIP;Open;4-Finger;8 Pos.;Solder;0.3In.;Ber. Copper;30muIn. Gold;0.125In. IC & Component Sockets 8P GLD PIN GLD CONT Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube DIP SOCKET, 8POS, THROUGH HOLE Socket,DIP;Open;4-Finger;8Pos.;Solder;0.3In.;Ber.Copper;30muIn.Gold;0.125In.

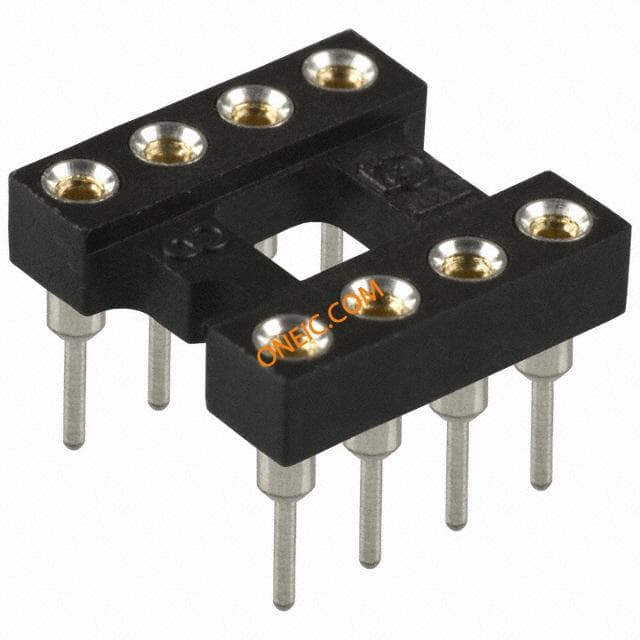

08-3518-10
Aries Electronics
8 PIN SOLDER TAIL DIP SOCKET IC & Component Sockets 8P SOLDER TIN/GLD Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole
D2608-42
Harwin Inc
8 WAY PRESS FIT IC SOCKET
2227MC-08-03-18-F1
Avnet, Inc.
SOCKET IC, DIL, 0.3", 8WAY
