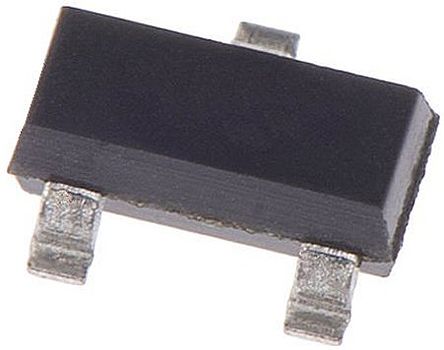

SPX2431AM-L
| Manufacturer | |
| Description | Voltage & Current References Precision Adjustable Shunt Regulator V-Ref Adjustable 2.5V to 20V 100mA 3-Pin SOT-23 IC VREF SHUNT PREC 2.5V SOT-23-3 V-Ref,Precision,Adj,Shunt,100mA SOT23 Voltage References Precision Adjustable Shunt Regulator EXAR 可调 2.5 - 20V 电压参考, ±0.5 %精确度, 10mA, 20 V输入, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Other Names | 1016-1408 |
| Standard Package | 1 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | ±0.5% | Reference Type | Adjustable |
| Voltage Rating | 20 V | Current - Output | 100mA |
| Voltage - Supply | 2.5 V ~ 36 V | Current - Cathode | 1mA |
| Number of Channels | 1 | Current Rating (Max) | 100mA |
| Contact Voltage (Max) | 2.52 V | Voltage - Input (Min) | 2.5 V ~ 36 V |
| Voltage - Output (Max) | 20 V | Regulator Current (Max) | 4 mA |
| Current - Output / Channel | 100 mA | Accuracy - Highest (Lowest) | 0.5% |
| Voltage - Output (Min/Fixed) | 2.48 V | Current - Collector (Ic) (Max) | 1mA |
| Current - Leakage (IS(off)) (Max) | 0.4 mA | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Width | 1.4mm | Height | 1.02mm |
| Length | 3.04mm | Packaging | Bulk |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | Package Cooled | SOT-23 |
| Package Quantity | SOT-23 | Size / Dimension | 3.04 x 1.4 x 1.02mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Topology | Shunt | ||
Environmental
| Operating Temperature | 0°C ~ 105°C | Temperature Coefficient | 30ppm/°C(Typ) |
| Temperature Coefficient (Typ) | 30 PPM / C | ||
