ELSH-F81N1-0LPGS-C4000
| Manufacturer | |
| Description | LED Uni-Color White 3-Pin SMT T/R High Power LEDs - White Neutral White 4000K 80lm 350mA LED SHUEN 1W HI PWR NEUT WHT SMD LED,1W,NEUTRAL WHITE,70LM |
| Category |
Business
| Product Category | High Power LEDs - White | Standard Package | Tape & Reel |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414010 |
Electrical
| Lamp Type | :- | Luminous Flux | 80 lm |
| Viewing Angle | 120 ° | Current - Output | 350mA |
| Voltage - Supply | 3.4V (2.95 V ~ 3.85 V) | LED Forward Current | 350 mA |
| LED Forward Voltage | 3.2 V | Current Rating (Max) | 400mA |
| Power Dissipation (Max) | :1W | Lumens/Watt @ Current - Test | 67 lm/W |
| Flux @ 25degC, Current - Test | 80 lm (80 lm ~ 90 lm) | Flux @ 85degC, Current - Test | 70 lm |
| Current - DC Forward (If) (Max) | :400mA | ||
Mechanical
| Color | White | Width | 3.05 mm |
| Height | 1.35 mm | Length | 4.5 mm |
| Weight | 0.05 | LED Color | :Neutral White |
| Packaging | Reel | Lamp Color | 4000 K |
| Lens Style | Circular | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | :2 |
| Package / Case | 3SMT | Material - Core | InGaN |
| Illumination Color | Neutral White | CRI (Color Rendering Index) | 75 |
Product Info
| Type | Uni-Color | Series | :Shuen |
| CCT (K) | 4000K (3710K ~ 4260K) | Number of LEDs | 1 |
Environmental
| Operating Temperature | + 100 C | Thermal Resistance of Package | 10°C/W |
| Luminous Flux @ Current/Temperature | 95 lm | ||
Documents & Media
Similar Parts
MAX16803ATE+
Analog Devices, Inc.
LED DRVR 9V/12V/15V/18V/24V 16-Pin TQFN EP LED Lighting Drivers 350mA HB LED Drvr w/PWM Dim and 5V Reg IC LED DRIVR HIGH BRIGHT 16-TQFN IC, LED DRIVER, HIGH BRIGHTNESS 10段 LED 驱动器, 6.5 → 40 V, 16引脚 TQFN封装
AP8800FNG-7
diodes, inc
Conv DC-DC Single Step Down 8V to 28V 10-Pin DFN EP T/R LED Lighting Drivers 28V, 350mA LED DC/DC Converter LEDDr 28V 350mA DFN3030 SMD IC LED DRIVER HIGH BRIGHT 10DFN IC LED DRIVR WHITE BCKLGT 10-DFN LED DRIVER, BUCK, 0.35A, 10DFN3030 350mA LED Step-Down Converter

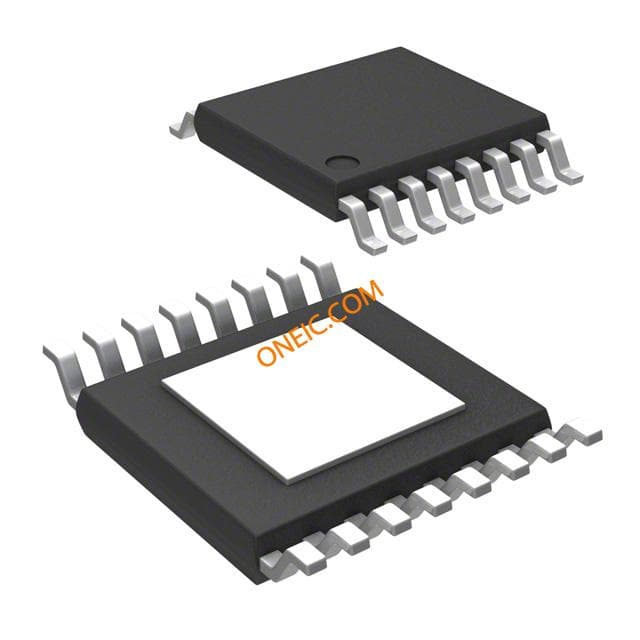

MIC3223YTSE
