MAX16803ATE+
| Manufacturer | |
| Description | LED DRVR 9V/12V/15V/18V/24V 16-Pin TQFN EP LED Lighting Drivers 350mA HB LED Drvr w/PWM Dim and 5V Reg IC LED DRIVR HIGH BRIGHT 16-TQFN IC, LED DRIVER, HIGH BRIGHTNESS 10段 LED 驱动器, 6.5 → 40 V, 16引脚 TQFN封装 |
| Category |
Business
| Part # Aliases | MAX16803 | Standard Package | Rail / Tube |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | ||
Electrical
| Dimming | :PWM | Display Type | :LED |
| Power - Rated | 2666.7 mW | Voltage Rating | 6.5 V to 40 V |
| Current - Output | :350mA | Current - Supply | 1.4 mA |
| Voltage - Supply | 6.5 to 40 V | Number of Outputs | 1 |
| Voltage - Input (Min) | 5.27V | Voltage - Output (Max) | :38V |
| Power Dissipation (Max) | 2666.7 mW | Current - Output High, Low | 350 mA |
| Voltage - Continuous Operating (Max) (MCOV) | :40V | ||
Mechanical
| Weight | 0.0001 | Packaging | Tube |
| Case Color | :TQFN | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16TQFN EP |
| Material Finish | :MSL 1 - Unlimited | Supplier Device Package | 16-TQFN (5x5) |
Product Info
| Type | High Brightness LED (HBLED) | Series | MAX16803 |
| Topology | PWM | Base Unit | :16803 |
| Internal Connection | Yes | Application Specifics | :Automotive Lighting, Warning Light |
Environmental
| Operating Temperature | + 125 C | ||
Documents & Media
Similar Parts

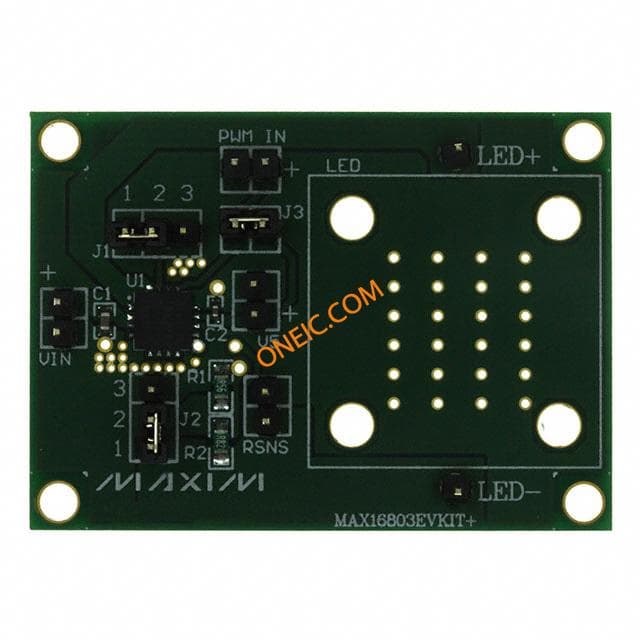

MAX16803EVKIT+
