MW22B-3-2K

Manufacturer	Evolutionary Technologies International, Inc.
Description	Precision Potentiometers 1W 2Kohms 5% Pot;Wirewound;Rest 2 Kilohms;Panel;3 Turns;Pwr-Rtg 1W;Shaft Dia 0.25in POTENTIOMETER, 3 TURN 2K OHM 0.7W Pot;Wirewound;Rest2Kilohms;Panel;3Turns;Pwr-Rtg1W;ShaftDia0.25In
Category	Resistors and PotentiometersRotary PotentiometersRotary Potentiometers

对参数有疑问？问 AI 助手

Business

Product

Precision Potentiometer

Product Category

Precision Potentiometers

Compliance

RoHS

RoHS Compliant

Tariff No

85334010

Electrical

Linearity	+/- 0.25 %	Tolerance	5 %
Resistance	2 kOhms	Element Type	Wirewound
Power - Rated	1 W	Resistance Tolerance	:± 5%
DC Resistance (DCR) (Max)	:2kohm

Mechanical

Taper	:Linear	Length	:19.05mm
Weight	0.023	Packaging	Bulk
Termination	:Solder	Shaft Detail	Slotted
Mounting Type	:Panel	Terminal Type	:Solder
Mounting Style	Panel	Rotation Angle	:1080°
Shaft Diameter	0.25 in	Termination Style	Solder Lug
Diameter - Outside	:22.35mm	Resistive Material	:Wirewound
Length - Shaft and Bearing	0.82 in

Product Info

Series	MW22B	Adjustment Type	:Shaft
Number of Gangs	:1	Number of Turns	3

Environmental

Operating Temperature	:105°C	Temperature Coefficient	:80ppm/°C
Temperature Coefficient (Typ)	:80ppm/°C

Documents & Media

PDF Document

mw22b.pdf

PDF Document

1334976.pdf

Similar Parts

MW22B-3-2K

ETI Systems

Precision Potentiometers 1W 2Kohms 5% Pot;Wirewound;Rest 2 Kilohms;Panel;3 Turns;Pwr-Rtg 1W;Shaft Dia 0.25in POTENTIOMETER, 3 TURN 2K OHM 0.7W Pot;Wirewound;Rest2Kilohms;Panel;3Turns;Pwr-Rtg1W;ShaftDia0.25In

$202.0974

Details

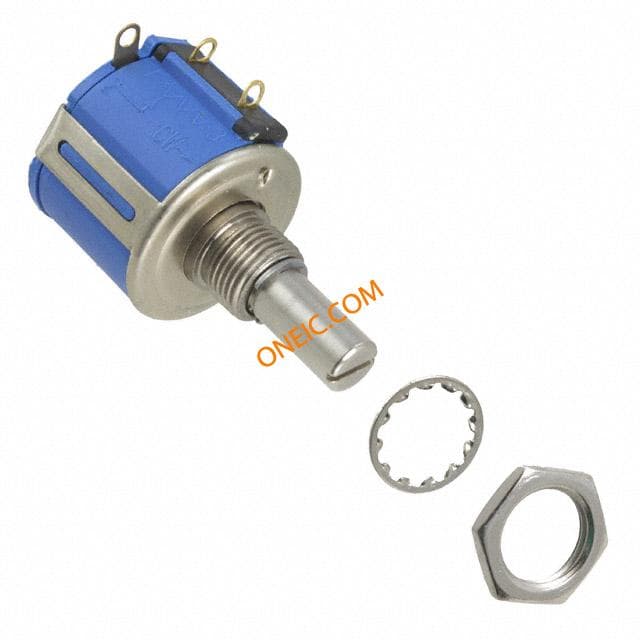

3543S-1-202L
