点击放大查看
565-003-000-310
| Manufacturer | |
| Description | 3 WAY PLUG BLACK Pin & Socket Connectors 3WAY 3A PLUG (22-28) WATERPROOF HSNG BLK Conn Housing M 3 POS 2.5mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 3POS, 2.5MM Connector: wire-wire; 565; plug; male; PIN:3; IP67; Locking: lock |
| Category |
Business
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Test | 100V | Voltage Rating | 250 V |
| Current Rating (Max) | 3 A | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Pitch | 2.5 mm |
| Width | 11.6mm | Weight | 0 |
| Packaging | Bulk | Contact Type | Male Pin |
| Body Material | PBT | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Locking Feature | lock | Housing Material | Polybutylene Terephthalate (PBT) |
| Package Quantity | 500 | Connector - Cable | plug |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| Material - Insulation | silicone rubber | Wire Gauge or Range - AWG | 28-22 |
Product Info
| Spg | 500 | Note | Contacts Not Provided |
| Gender | :Plug | Series | :565 Waterproof |
| Features | Waterproof | Product Type | Plug Housings |
| Adapter Series | 565 | Number of Units | 1 |
| For Use With/Related Products | :565 Series Crimp Contacts | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
Similar Parts
565-003-000-411
EDAC
Pin & Socket Connectors 3P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 3POS WATERPROOF

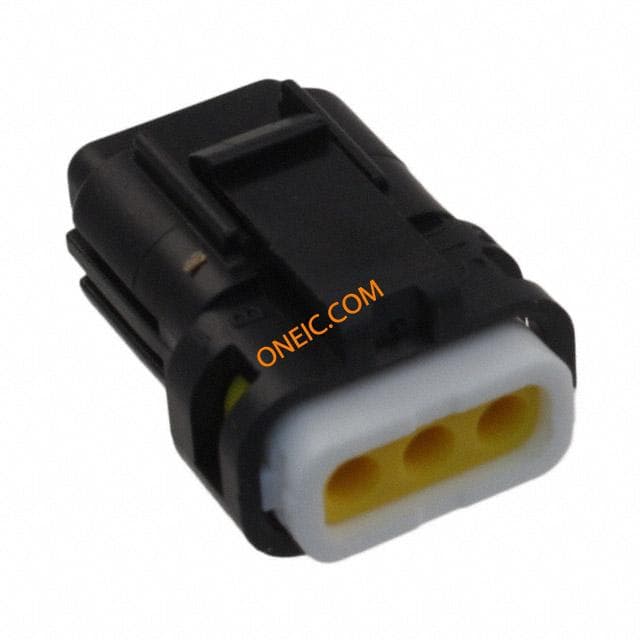

565-003-000-410
EDAC Inc
CONN RCPT 3 WAY BLACK 22-28AWG Headers & Wire Housings 3WAY 3A RCPT (22-28) WATERPROOF HSNG BLK Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount CONNECTOR, HOUSING, RECEPTACLE, 3POS Connector: wire-wire; 565; plug; female; PIN:3; IP67; Locking: lock

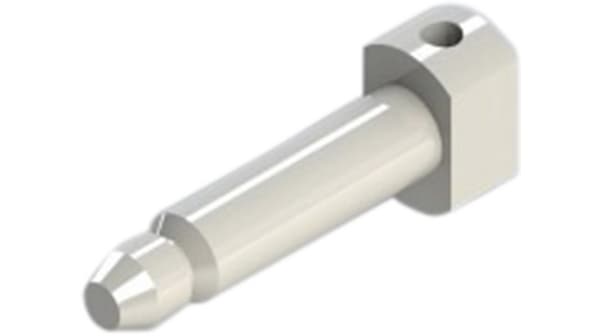

565-200-100
