516-230-538
| Manufacturer | |
| Description | COVER METAL RACK & PANEL 38POS Standard EDAC516 38 way metal cover Rack & Panel Connectors 38P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 38WAY Enclosure: for 516 series; 516; PIN:38; Mat: zinc alloy Metal cover, 516-230-538, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器 |
| Category |
Business
| Standard Pack | 1 | Product Category | Rack & Panel Connectors |
| Standard Package | 25 | ||
Compliance
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Number of Poles | :38 | ||
Mechanical
| Depth | 22.23mm | Height | 39.78mm |
| Length | 56.03mm | Weight | 0.096 |
| Material | :Metal | Cable Exit | :90° |
| Body Material | zinc alloy | Connector Type | :Backshell |
| Connector Style | Rack and Panel | Material - Body | :Zinc |
| Housing Material | Zinc | Package Quantity | 25 |
| Termination Style | Screw | Color - Connectors | :Grey |
| Number of Contacts | 38 | Number of Positions | 38 |
| Shell Size - Insert | :38 | Supplier Device Package | for 516 series |
Product Info
| Spg | 25 | Series | 516 |
| Product Type | Receptacle Housing | Accessory Type | Backshell |
| Adapter Series | 516 | Specifications | Metal, 38 Positions |
| Number of Units | 1 | For Use With/Related Products | 516 Series |
Environmental
| Operating Temperature | -65...125°C | ||
Documents & Media
Similar Parts
516-230-538
EDAC Inc
COVER METAL RACK & PANEL 38POS Standard EDAC516 38 way metal cover Rack & Panel Connectors 38P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 38WAY Enclosure: for 516 series; 516; PIN:38; Mat: zinc alloy Metal cover, 516-230-538, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器

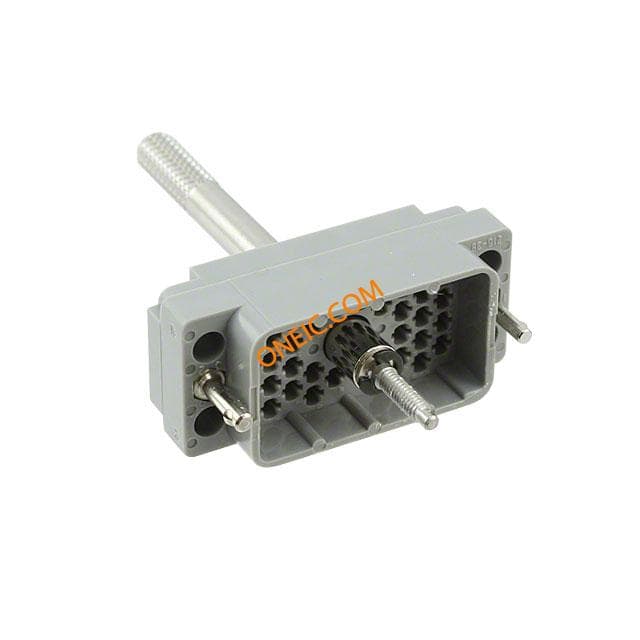

516-038-000-301
EDAC Inc
CONN RACK & PANEL PLUG 38POS Standard EDAC516 cable plug, 38 way Rack & Panel Connectors 38P PLUG WITH SCREW Conn Rack and Panel PL 38 POS Crimp ST Panel Mount PLUG, 38WAY Plug; Connector: rectangular; 516; hermaphrodite; PIN:38; 2kV Plug housing Pitch3.81 mm / 6.6 mm Poles 38 For hermaphroditic contacts / Free hanging/cable mount 516, 516-038-000-301, Edac EDAC EDAC516 系列 38 路 公 直 RJ45-Rangierfeld, 镀金触点, 8.5A

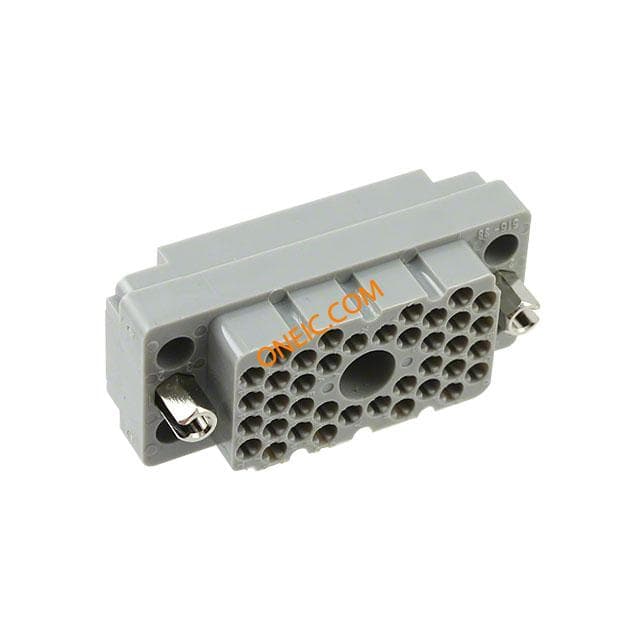

516-038-000-402
