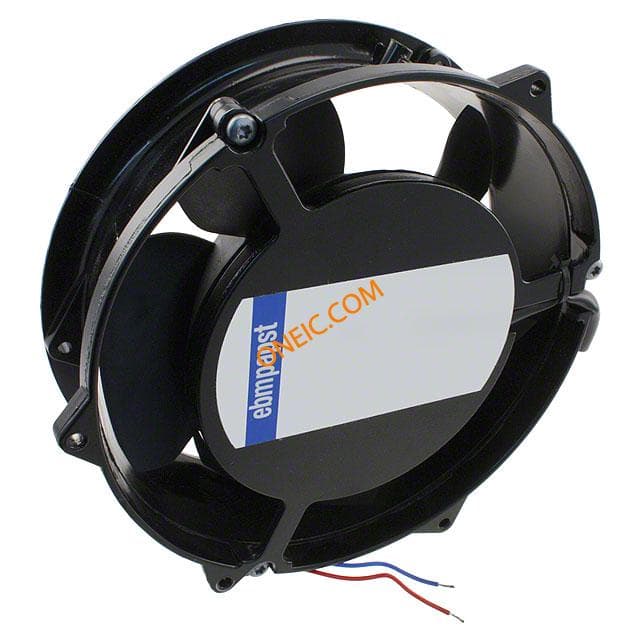

DV6248
| Manufacturer | |
| Description | DC Fan Ball Bearing 48V 40W 4300RPM 317.8CFM 63dB Flange Mount FAN TUBEAXIAL 171.5X50.8MM 48VDC Brushless axial fan,539.9cu.m/h 48Vdc Blowers 48V DC FAN Fan;DC;48V;172x51mm;Round;317.8CFM;40W;63dBA;4300RPM;Leadwires |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 112 Days | Subcategory | Blowers and Fans |
| Product Category | Blowers | Standard Package | 30 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULListed,CSACertified,VDEApproved |
Electrical
| Noise | 63 dB(A) | Speed | 4300 RPM |
| Power - Max | 40W | Power (Watts) | 40W |
| Power - Rated | 40 W | Voltage Range | 28 ~ 60VDC |
| Voltage Rating | 48VDC | Voltage - Supply | 48 V |
Mechanical
| RPM | 4300 RPM | Size | 6.8x2(172x51)In.(mm) |
| Weight | 1.8 lbs (816.5g) | Air Flow | 317.8 CFM (9.00m³/min) |
| Fan Type | Tubeaxial | Material | Metal |
| Rotation | CCW | Termination | 2 Wire Leads |
| Bearing Type | Ball | Housing Material | Metal |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Round - 171.5mm Dia x 50.8mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 6.8x2(172x51)In.(mm) |
| Dimensions - Overall | 6.8x2In. | ||
Product Info
| Type | Round | Series | DV6200 |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | DV6200Series |
| Configuration | Round | ||
Environmental
| Rated Life | 90000 hrs @ 40°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Thermal Resistance @ Natural | 317.8CFM | Operating Temperature - Junction | 75°C |
