8214JN
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 10W 8400RPM 78CFM 55dB Flange Mount FAN 80X38MM 24VDC 77.7CFM DC Axial Jet fan 24Vdc, 132m³/H Fans 80x38 24DC 78CFM 10W 8400RPM 55dBA BB DC Fan Ball 24V 10W 8400RPM 78CFM 55dB Flange Mount FAN, 80MM, 24VDC Fan;DC;24V;80x80x38mm;Sq;78CFM;10W;55dBA;Leadwires Axial fan 80 x 80 x 38 mm 132 m³/h 24 VDC 11 W, 8214JN, EBM-Papst ebm-papst 8200J 系列 直流 轴流风扇, 132.6m³/h, 24 V 直流, 10W, 80 x 80 x 38mm |
| Category |
Business
| Product | Fans | Other Names | 381-2274 |
| Product Category | Fans | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 84145920 | Approval Agency | :CE |
Electrical
| Noise | 55 dB(A) | Speed | 8400 RPM |
| Range deg/s | :8400rpm | Power (Watts) | 10.0W |
| Power - Rated | 10 W | Voltage Range | 18 ~ 26.4VDC |
| Voltage Rating | 24VDC | Voltage - Supply | 24 V |
| Power Supply Type | :Wire Leaded | Voltage - Input (Min) | :14VDC |
| Power - Average Forward | :10W | Voltage - Continuous Operating (Max) (MCOV) | :26.4VDC |
Mechanical
| RPM | 8400 RPM | Size | 3.2x1.5(80x38)In.(mm) |
| Depth | :38mm | Width | :80mm |
| Weight | 0.353 lb (160.12g) | Air Flow | 78.0 CFM (2.21m³/min) |
| Fan Type | Tubeaxial | Material | :Fibreglass-reinforced PA plastic |
| Rotation | CW | Flow (CFM) | :2.18m³/min |
| Flow (SCFM) | :78cu.ft/min | Termination | 2 Wire Leads |
| Bearing Type | Ball | Height (Max) | :80mm |
| Housing Material | Polybutylene Terephthalate (PBT) | Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Primary Material | Fans |
| Size / Dimension | Square - 80mm L x 80mm H x 38mm W | Termination Style | Wire Leads |
| Fan Accessory Type | 3.2x1.5(80x38)In.(mm) | Length - Lead Wire | :310mm |
| Panel Cutout Shape | :90mm | Dimensions - Overall | 3.2x3.2x1.5In. |
| Material - Housing & Prism | :Fibreglass-reinforced PBT plastic | ||
Product Info
| Type | :Reverse polarity protection | Series | 8200J |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 8200JSeries |
| Configuration | Square | ||
Environmental
| Rated Life | 62500 hrs @ 40°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Thermal Resistance @ Natural | 78CFM | Operating Temperature - Junction | :62500h |
Documents & Media
Similar Parts
LZ22N
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories METAL FINGER GUARD 80mm 5 RINGS FAN GUARD 80MM METAL Finger Guard 80mm Steel Fan Accessories METAL FINGER GUARD 80mm 5 RINGS Thrml Mgmt Access Metal Finger Guard FINGER GUARD, FOR PAPST SERIES 8000 FingerGuard,Welded,NickelChrome-PlatedSteelWire,.062in(1.6mm)diameter ebm-papst 80mm风扇 钢 手指防护罩
LZ32P
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories Plastic Finger Guard Fits 8000 FINGER GUARD PLASTIC F/8000 SER Fan Accessories Plastic Finger Guard Fits 8000 Guard,Plasticfor8000SeriesAxialFan 80mm风扇 塑料 手指防护罩, 88 x 88mm
LZ32-4
ebm-papst
Thrml Mgmt Access Finger Guard 80mm Steel Wire Fan Cords & Accessories FINGER GD 8000 FAN GUARD 80MM METAL Fan Accessories FINGER GD 8000 FingerGuard;ThermalMgnt;80mm;SteelWire Protective grid Metal 80 x 80 mm, LZ32-4, EBM-Papst 80mm风扇 金属，钢 手指防护罩, 78.2 x 78.2mm
LZ32-2
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories FINGER GRD 80MM 4.5HOLE FAN GUARD 80MM PLASTIC Fan Accessories FINGER GRD 80MM 4.5HOLE
LZ32-3
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD 80MM W/BARB FAN GUARD 80MM PLASTIC Finger Guard Fan Accessories FINGER GUARD 80MM W/BARB FingerGuard 80mm风扇 塑料 手指防护罩, 80 x 80mm
8214JN
ebm-papst
DC Fan Ball Bearing 24V 10W 8400RPM 78CFM 55dB Flange Mount FAN 80X38MM 24VDC 77.7CFM DC Axial Jet fan 24Vdc, 132m³/H Fans 80x38 24DC 78CFM 10W 8400RPM 55dBA BB DC Fan Ball 24V 10W 8400RPM 78CFM 55dB Flange Mount FAN, 80MM, 24VDC Fan;DC;24V;80x80x38mm;Sq;78CFM;10W;55dBA;Leadwires Axial fan 80 x 80 x 38 mm 132 m³/h 24 VDC 11 W, 8214JN, EBM-Papst ebm-papst 8200J 系列 直流 轴流风扇, 132.6m³/h, 24 V 直流, 10W, 80 x 80 x 38mm

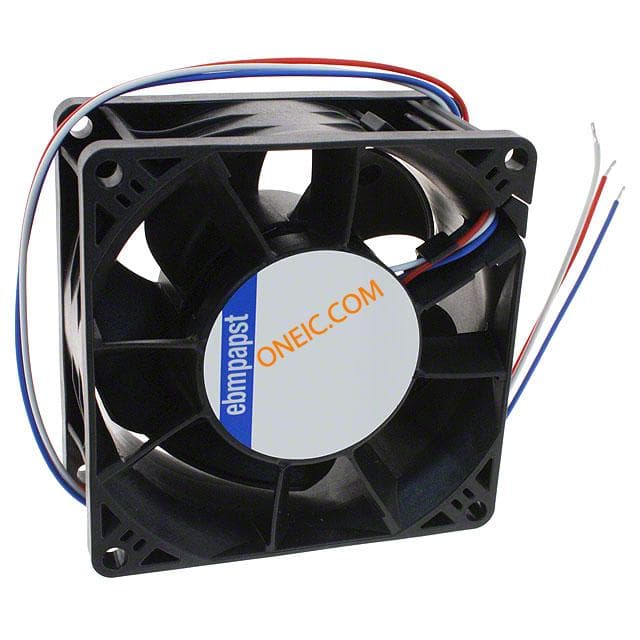

8214J/2H3
