点击放大查看
612F
| Manufacturer | |
| Description | DC Fan Sintec-Sleeve Bearing 12V 1W 3900RPM 17.1CFM 27dB Flange Mount FAN TUBEAXIAL 60X15MM 12VDC Miniature & slimline fan,29cu.m/h 12Vdc Fans 60x15 12DC 17.1CFM 1W 3900RPM 27dB SB FAN, 60MM, 12VDC, 29M3/H, 27DBA Fan;DC;12V;60x60x15mm;Sq;17.5CFM;1W;27dBA;3900RPM;Leadwires ebm-papst 600F 系列 直流 轴流风扇, 29m³/h, 12 V 直流, 1W, 60 x 60 x 15mm |
| Category |
Business
| Lead Time | 112 Days | Subcategory | Blowers and Fans |
| Product Category | Fans | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 84145920 | Rad Hardened | No |
Electrical
| Noise | 27 dB(A) | Speed | 3900 RPM |
| Frequency | Not Required | Input Range | 10.8V to 13.2V |
| Power - Max | 1 | Noise Figure | 27 dB |
| Power (Watts) | 1.00W | Power - Rated | 1 W |
| Voltage Range | 10.8 ~ 13.2VDC | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Power Supply Type | :Wire Leaded |
| Power - Average Forward | :1W | ||
Mechanical
| RPM | 3900 RPM | Size | 2.36x0.6(60x15)In.(mm) |
| Depth | 60 mm | Height | 15 mm |
| Weight | 0.066 lb (29.94g) | Air Flow | 17.1 CFM (0.484m³/min) |
| Diameter | Not Required mm | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CCW |
| Thickness | 15 | Flow (CFM) | :29m³/h |
| Flow (SCFM) | :17.07cu.ft/min | Termination | 2 Wire Leads |
| Bearing Type | Sintec | Nominal I.D. | 3900 |
| Mounting Style | Flange | Housing Material | Polybutylene Terephthalate (PBT) |
| Length - Overall | 60 mm | Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Primary Material | Fans |
| Size / Dimension | Square - 60mm L x 60mm H x 15mm W | Termination Style | Wire Leads |
| Fan Accessory Type | 2.36x0.6(60x15)In.(mm) | Dimensions - Overall | 2.36x2.36x0.6In. |
Product Info
| Type | DC Fan | Series | 600F |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 600FSeries |
| Configuration | Square | ||
Environmental
| Rated Life | 50000 hrs @ 20°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Thermal Resistance @ Natural | 17.1CFM | Operating Temperature - Junction | 70C |
Documents & Media
Similar Parts
612F
ebm-papst
DC Fan Sintec-Sleeve Bearing 12V 1W 3900RPM 17.1CFM 27dB Flange Mount FAN TUBEAXIAL 60X15MM 12VDC Miniature & slimline fan,29cu.m/h 12Vdc Fans 60x15 12DC 17.1CFM 1W 3900RPM 27dB SB FAN, 60MM, 12VDC, 29M3/H, 27DBA Fan;DC;12V;60x60x15mm;Sq;17.5CFM;1W;27dBA;3900RPM;Leadwires ebm-papst 600F 系列 直流 轴流风扇, 29m³/h, 12 V 直流, 1W, 60 x 60 x 15mm

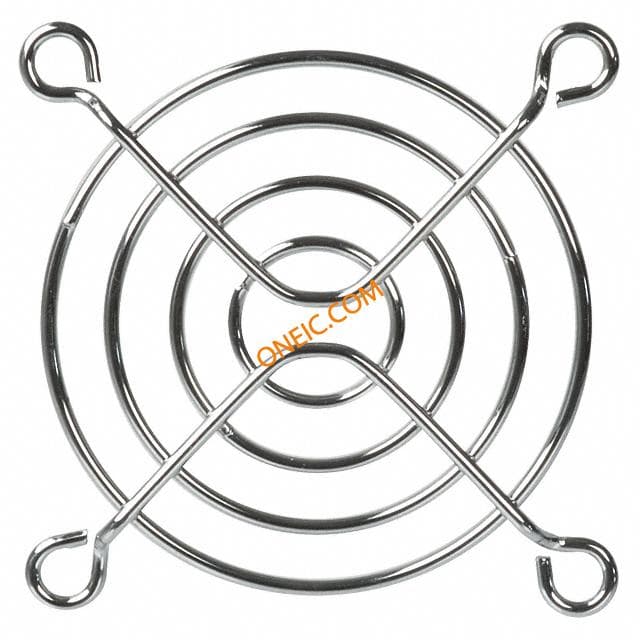

08147
