5114N

Manufacturer	ebm-papst Mulfingen GmbH & Co. KG
Description	DC Fan Ball Bearing 24V 9.5W 2900RPM 147.1CFM 48dB Flange Mount FAN TUBEAXIAL 135X38MM 24VDC Ball bearing axial fan,250cu.m/h 24Vdc Fans 135x38 24V 147.1CFM 9.5W 2900RPM 48dB BB FAN, 135MM, 24VDC Fan;DC;24V;135x135x38mm;Sq;147.1CFM;9.5W;48dBA;Leadwires ebm-papst 5100N 系列直流轴流风扇, 250m³/h, 24 V 直流, 9.5W, 135 x 135 x 38mm
Category	Hardware and Thermal SolutionsDC FansBlowers

对参数有疑问？问 AI 助手

Business

Product	Fans	Lead Time	112 Days
Subcategory	Blowers and Fans	Product Category	Fans
Standard Package	25

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	84145920
Approval Agency	:CSA, UL

Electrical

Noise	48 dB(A)	Speed	Clockwise
Input Range	12 to 30	Power (Watts)	9.00W
Power - Rated	9.5 W	Voltage Range	12 ~ 32VDC
Voltage Rating	24VDC	Voltage - Supply	24 V
Power Supply Type	:Wire Leaded	Current Rating (Max)	0.460A
Voltage - Input (Min)	:12V	Power - Average Forward	:9.5W
Voltage - Continuous Operating (Max) (MCOV)	:30V

Mechanical

RPM	2900 RPM	Size	5.31x1.5(135x38)In.(mm)
Depth	:38mm	Width	:135mm
Height	38	Weight	1.4 lbs (635g)
Air Flow	147.0 CFM (4.16m³/min)	Fan Type	Tubeaxial
Material	Metal	Rotation	CCW
Flow (CFM)	:250m³/h	Flow (SCFM)	:147.1cu.ft/min
Termination	Leads	Bearing Type	Ball
Height (Max)	:135mm	Mounting Type	Flange Mount
Housing Material	Aluminum	Length - Overall	135
Material - Blade	Aluminum	Material - Frame	Aluminum
Primary Material	Fans	Size / Dimension	Square - 135mm L x 135mm H x 38mm W
Fan Accessory Type	5.31x1.5(135x38)In.(mm)	Panel Cutout Shape	:133mm
Dimensions - Overall	5.31x5.31x1.5In.	Mounting Hole Diameter	:4.3mm
Mounting Panel Thickness	:113mm

Product Info

Type	:Standard, 135mm	Series	5100N
Function	DC	Direction	ExhaustoverStruts
Switch Type	DC	Manufacturer	5100NSeries
Configuration	Square

Environmental

Rated Life	80000 hrs @ 40°C	Operating Temperature	-13 ~ 162°F (-25 ~ 72°C)
Thermal Resistance @ Natural	147.1CFM	Operating Temperature - Junction	:80000h

Documents & Media

PDF Document

5114N,5114N/2 Jul/2013

PDF Document

Accessories Quick Reference

PDF Document

DC-axial-fan-5114N-ENG.pdf

PDF Document

PDF Document

PDF Document

PDF Document

Similar Parts

LZ26

ebm-papst

Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories FINGER GUARD METAL F/172MM FANS FINGER GUARD METAL F/172MM FANS Fan Accessories FINGER GUARD METAL F/172MM FANS LZ26 FingerGuard,172mm,6Ring

$76.3504

Details

LZ120

ebm-papst

Cable Assembly Cord Set 0.61m 2 POS Power PL Fan Cords & Accessories CORD SET 24 UL/CSA CONNECTING CABLE W/ MOLDED PLUG Power Fan Lead For Use With All Fan Types with Flat Plug 3 x 0.5 mm Fan Accessories CORD SET 24 UL/CSA LEAD, FAN, 0.61M PlugandCordSet;3.0x0.5mmPinHole;24inCord;Straight;Black 电源风扇引线, 使用于交流紧凑型，带引脚 2.8/3.0 x 0.5 mm

$49.4088

Details

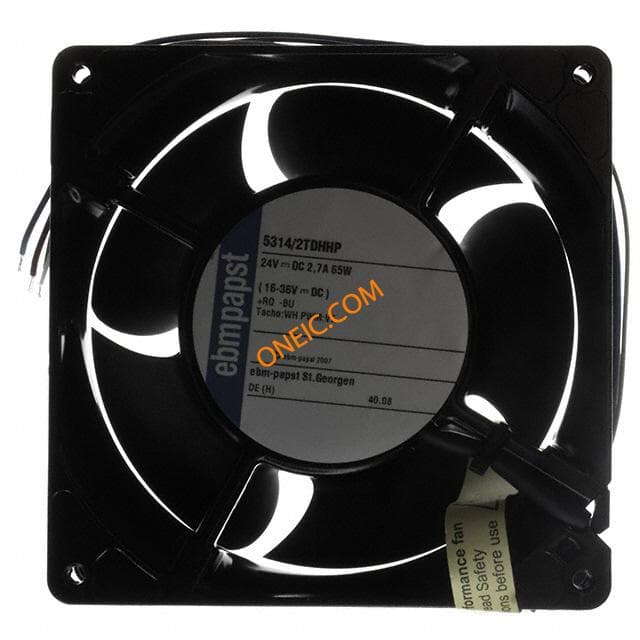

5314/2TDHHP

ebm-papst

DC Fan Ball Bearing 24V 67W 7000RPM 288.4CFM 75dB Flange Mount FAN TUBEAXIAL 140X51MM 24VDC S-Force DC fan PWM, 140mm 490cu.m/h 24V Fans 140x51mm 24VDC 288.4 CFM FAN, AXIAL, 140X140X51MM, 24VDC Fan;DC;24V;140x140x51mm;Sq;288.4CFM;67W;75dBA;Leadwires ebm-papst 5300 系列直流轴流风扇, 490m³/h, 24 V 直流, 67W, 139.6 x 139.6 x 50.8mm

$2222.3488

Details

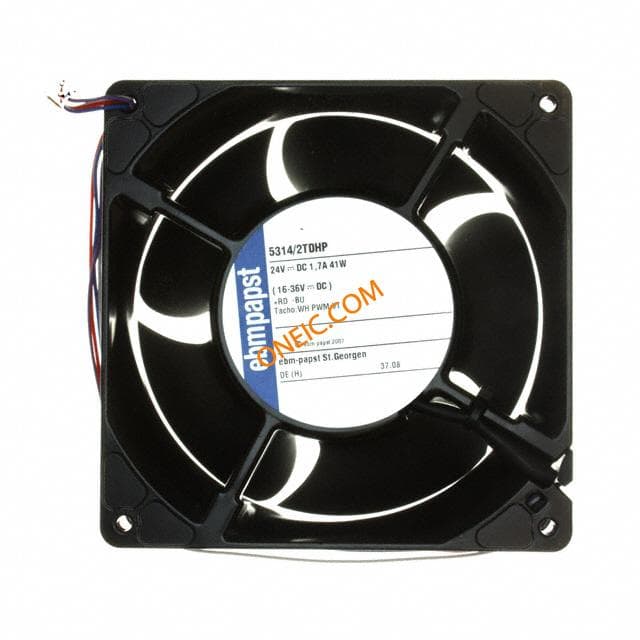

5314/2TDHP
