5314/2TDHHP
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 67W 7000RPM 288.4CFM 75dB Flange Mount FAN TUBEAXIAL 140X51MM 24VDC S-Force DC fan PWM, 140mm 490cu.m/h 24V Fans 140x51mm 24VDC 288.4 CFM FAN, AXIAL, 140X140X51MM, 24VDC Fan;DC;24V;140x140x51mm;Sq;288.4CFM;67W;75dBA;Leadwires ebm-papst 5300 系列 直流 轴流风扇, 490m³/h, 24 V 直流, 67W, 139.6 x 139.6 x 50.8mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Other Names | 381-2297 |
| Product Category | Fans | Standard Package | 25 |
Compliance
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84145920 |
| Rad Hardened | No | ||
Electrical
| Noise | 75 dB(A) | Speed | Counter Clockwise |
| Frequency | Not Required | Input Range | 16V to 36V |
| Noise Figure | 75 dB | Power (Watts) | 67W |
| Power - Rated | 67 W | Voltage Range | 16 ~ 36VDC |
| Voltage Rating | 24VDC | Voltage - Supply | 24 V |
| Power Supply Type | :Wire Leaded | Voltage - Input (Min) | :16VDC |
| Power - Average Forward | :67W | Voltage - Continuous Operating (Max) (MCOV) | :36VDC |
Mechanical
| RPM | 7000 RPM | Size | 5.5x2(140x51)In.(mm) |
| Depth | 139.6 mm | Width | :140mm |
| Height | 50.8 mm | Weight | 2 lbs (907.2g) |
| Air Flow | 288.4 CFM (8.17m³/min) | Diameter | Not Required mm |
| Fan Type | Tubeaxial | Material | Plastic |
| Rotation | CCW | Flow (CFM) | :490m³/h |
| Flow (SCFM) | :288.4cu.ft/min | Termination | Leads |
| Bearing Type | Ball | Height (Max) | :140mm |
| Mounting Type | Flange Mount | Mounting Style | Flange |
| Housing Material | Aluminum | Length - Overall | 139.6 mm |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Square - 140mm L x 140mm H x 50.8mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 5.5x2(140x51)In.(mm) |
| Length - Lead Wire | :310mm | Dimensions - Overall | 5.5x5.5x2In. |
Product Info
| Type | DC Fan | Series | 5300 |
| Features | PWM Control; Speed Sensor (Tach) | Function | DC |
| Direction | ExhaustoverStruts | Switch Type | DC |
| Manufacturer | 5300Series | Configuration | Square |
Environmental
| Rated Life | 62500 hrs @ 40°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Thermal Resistance @ Natural | 288.4CFM | Operating Temperature - Junction | 70C |
Documents & Media
Similar Parts
LZ53
ebm-papst
Thrml Mgmt Access Grill Guard 140mm Passivated Steel Wire Fan Cords & Accessories Steel for 140mm Fan 183x183x6.45mm HxWxD Finger Guard 140mm, 136.5 x 136.5mm Steel Fan Accessories Steel for 140mm Fan 183x183x6.45mm HxWxD FAN FINGER GUARD, METAL, 140MM METALFINGERGUARD140X140 140mm风扇 钢 手指防护罩, 136.5 x 136.5mm
$31.7051
Details

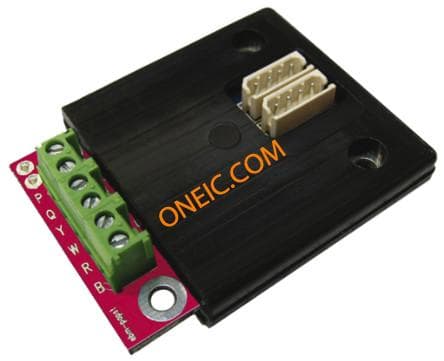

CPC48VV10UN-000
