点击放大查看
4414F
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 5W 100.1CFM 43dB Flange Mount FAN TUBEAXIAL 119X25.4MM 24VDC Ball bearing axial fan,170 m/h 24Vdc Fans 119x25 24DC 100CFM 5W 2900RPM 43dBA BB FAN, 119MM, 24VDC Fan;DC;24V;120x120x25mm;Sq;101.1CFM;5W;43dBA;Leadwires Axial fan 119 x 119 x 25 mm 170 m³/h 24 VDC 5 W, 4414F, EBM-Papst ebm-papst 4400 系列 直流 轴流风扇, 170m³/h, 24 V 直流, 5W, 119 x 119 x 25mm |
| Category |
Business
| Product | Fans | Lead Time | 140 Days |
| Subcategory | Blowers and Fans | Product Category | Fans |
| Standard Package | 25 | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84145920 |
| Approval Agency | :CSA, UL, VDE | ||
Electrical
| Noise | 43 dB(A) | Speed | Counter Clockwise |
| Input Range | 12 to 28 | Power (Watts) | 5.00W |
| Power - Rated | 5 W | Voltage Range | 12 ~ 28VDC |
| Voltage Rating | 24VDC | Voltage - Supply | 24 V |
| Power Supply Type | :Wire Leaded | Voltage - Input (Min) | :12V |
| Power - Average Forward | :5W | Voltage - Continuous Operating (Max) (MCOV) | :28V |
Mechanical
| RPM | 2900 RPM | Size | 4.7x1(120x25)In.(mm) |
| Depth | :25mm | Width | :119mm |
| Height | 25.4 | Weight | 0.38 lb (172.37g) |
| Air Flow | 100.1 CFM (2.83m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CCW |
| Flow (CFM) | :170m³/h | Flow (SCFM) | :100.1cu.ft/min |
| Termination | Leads | Bearing Type | Ball |
| Height (Max) | :119mm | Mounting Type | Flange Mount |
| Housing Material | Polybutylene Terephthalate Polymer | Length - Overall | 119 |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Primary Material | Fans | Size / Dimension | Square - 119mm L x 119mm H x 25.4mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 4.7x1(120x25)In.(mm) |
| Length - Lead Wire | :310mm | Panel Cutout Shape | :116mm |
| Dimensions - Overall | 4.7x4.7x1In. | Mounting Hole Diameter | :4.5mm |
| Mounting Panel Thickness | :104.8mm | ||
Product Info
| Type | :Standard,119mm | Series | 4400F |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 4400FSeries |
| Configuration | Square | ||
Environmental
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) | Thermal Resistance @ Natural | 100.1CFM |
| Operating Temperature - Junction | 60°C | ||
Documents & Media
Similar Parts
4414F
ebm-papst
DC Fan Ball Bearing 24V 5W 100.1CFM 43dB Flange Mount FAN TUBEAXIAL 119X25.4MM 24VDC Ball bearing axial fan,170 m/h 24Vdc Fans 119x25 24DC 100CFM 5W 2900RPM 43dBA BB FAN, 119MM, 24VDC Fan;DC;24V;120x120x25mm;Sq;101.1CFM;5W;43dBA;Leadwires Axial fan 119 x 119 x 25 mm 170 m³/h 24 VDC 5 W, 4414F, EBM-Papst ebm-papst 4400 系列 直流 轴流风扇, 170m³/h, 24 V 直流, 5W, 119 x 119 x 25mm
LZ126
ebm-papst
Fan Cords & Accessories 2 Prong Fan Cord PVC 36 Cable Assembly Patch Cord 1m 2 POS Power M CONNECTING CABLE W/ MOLDED PLUG Fan Accessories 2 Prong Fan Cord PVC 36 Plug And Cord Set Cordset,39.4in,StraightPlug,.02Pins,PVCBlack 连接器电缆 风扇引线, 使用于所有类型的风扇,带平插头 2.8/3 x 0.5
LZ30-4
ebm-papst
Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇 金属，钢 手指防护罩, 119 x 119mm
LZ30
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories MTL FINGER GRD 4000/9000 SC120-W5 FAN GUARD 119MM METAL Fan Accessories MTL FINGER GRD 4000/9000 SC120-W5 Thrml Mgmt Access Metal Finger Guard WELDED,NICKELCHROME-PLATEDSTEELWIREFORSERIES2500S,4000AND5500S 119mm风扇 金属，钢 手指防护罩, 115 (Dia)mm
LZ40/60
ebm-papst
Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER
LZ60
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制 扇形过滤器, 用于119mm风扇
LZ40N
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制 指形护罩
LZ30-6
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇 塑料 手指防护罩, 119 x 119mm

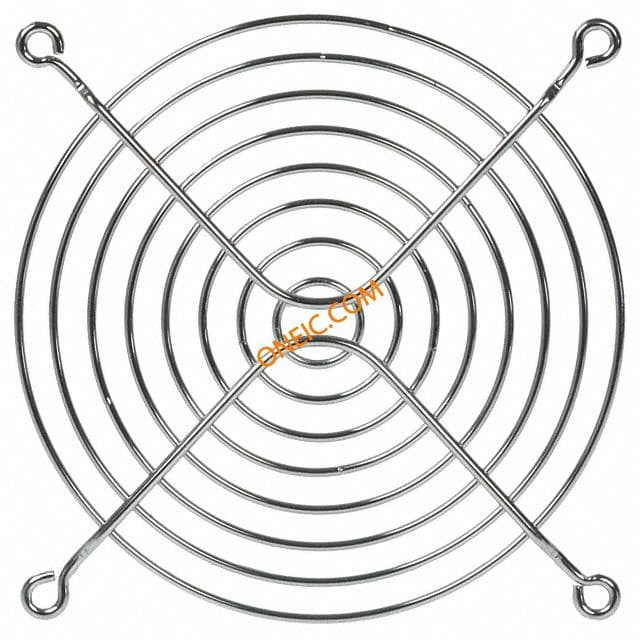

08130
