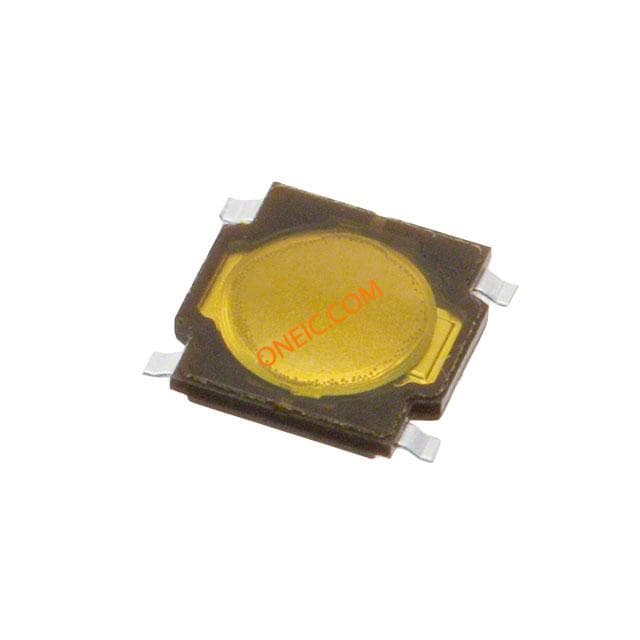

TL3315NF160Q
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.05A 15V Tactile Switches LOPRO 160GF SMD Switch Tactile N.O. SPST Flush Round Button Gull Wing 0.05A 15VDC 1.57N SMD SWITCH, TACTILE SPST 0.05A, SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4621TR | Product Category | Tactile Switches |
| Standard Package | 5,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365019 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Current - Max/Contact | :50mA | Contact Rating @ Voltage | 0.05A @ 15VDC |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :15V |
Mechanical

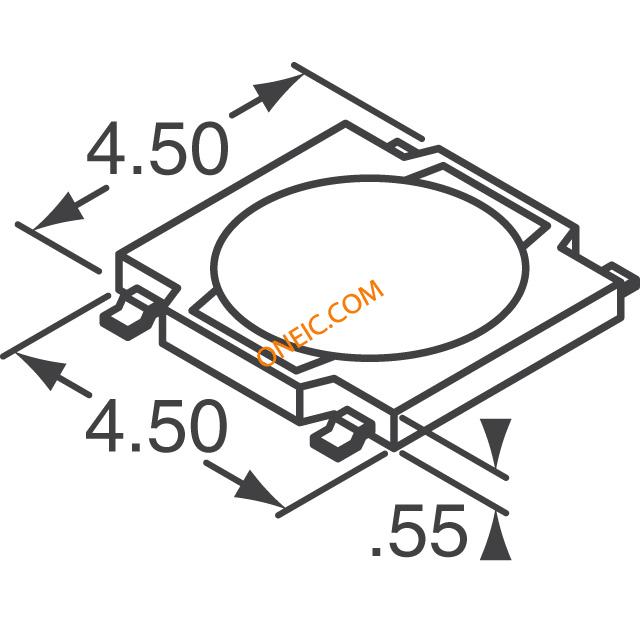

| Weight | 0.002 | Outline | 4.50mm x 4.50mm |
| Packaging | Tape & Reel (TR) | Contact Form | SPST |
| Actuator Type | Snap Dome | Mounting Type | Surface Mount |
| Switch Travel | 0.20mm | Connector Type | No |
| Contact Finish | Silver | Mounting Style | SMD/SMT |
| Operating Force | 160gf | Termination Style | Gull Wing |
| Actuator Orientation | Top Actuated | Switch Actuation Level | :Top |
| Contact Layout, Typical | :SPST | Actuator Height off PCB, Vertical | 0.55mm |
Product Info
| Series | TL3315 | Illumination | Non-Illuminated |
Environmental
| Mechanical Life | 500,000 Cycles | Operating Temperature | -20°C ~ 70°C |
