7291-2PG-300
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON PAN MT #20 PC TAIL Conn Field Installable PIN 2 POS Solder ST Thru-Hole 2 Terminal 1 Port CONN RCPT 2POS PNL MNT PIN MINI-CONPANELMT#20PCTAIL |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Depth | 20.6 | Height | 23.5 |
| Diameter | 23.5 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 18-16 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 2Signal | Mounting Type | Through Hole |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Contact Material | Brass | Termination Style | Solder Tail |
| 1st Contact Gender | PIN | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Material, Finish | Nylon |
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6282-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER CONN PLUG 2POS CABLE SKT MINI-CONCABLE#20SOLDER
6282-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#20SOLDER
6293SP
Conxall / Switchcraft
Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

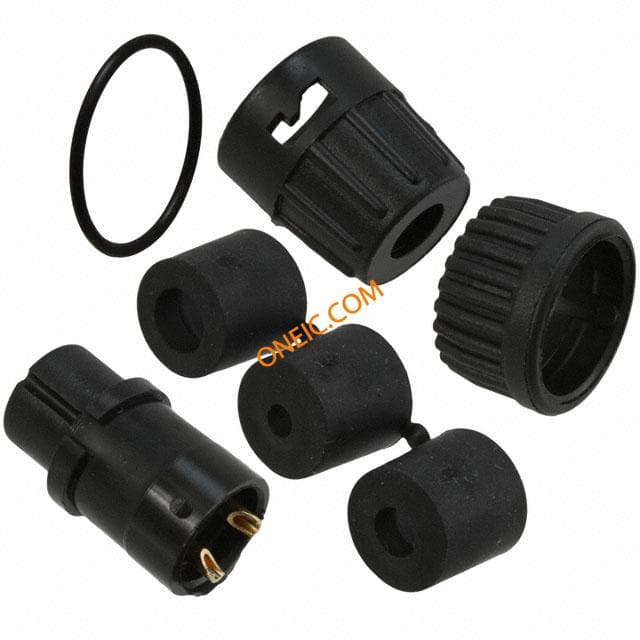

6282-2SG-3DC
Conxall / Switchcraft
Standard Circular Connector 2P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT Connector;#2;SolderCup;2;Socket;GoldoverNickel(Standard);600V;Nylon
6293
Conxall / Switchcraft
Standard Circular Connector MINI GASKET MINI GASKET FOR MICRO CIRCULAR CONNECTOR GASKET MINI-CON-X MINIGASKET
6280-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#20CRIMP

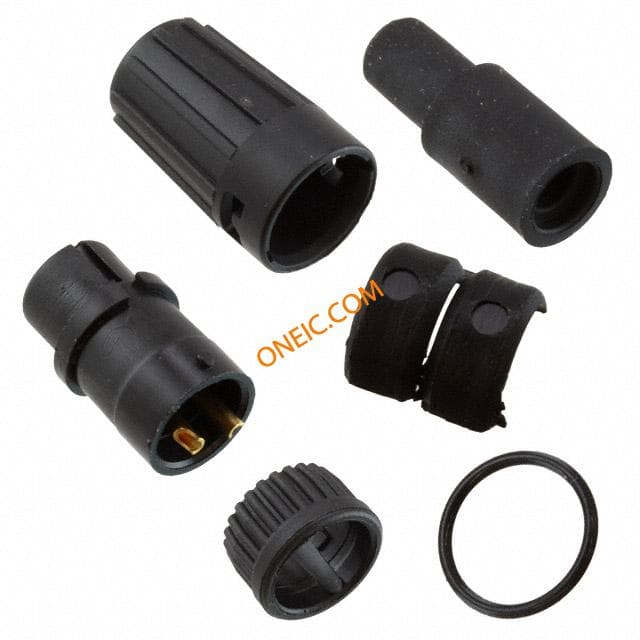

6282-2SG-519
