6282-2SG-311
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#20SOLDER |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Color | Black | Diameter | 18.2 |
| Packaging | Bulk | Cable Exit | No |
| Wire Gauge | 18-16 | Orientation | Keyed |
| Termination | Solder Cup | Contact Type | 2Signal |
| Mounting Type | Cable Mount | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Cable | Contact Material | Brass |
| Length - Overall | 33.4 | Termination Style | Solder Cup |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Material, Finish | Nylon |
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
8282-2PG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 SOLDER Conn Field Installable PIN 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN RCPT 2POS CABLE PIN MINI-CONCABLE-CABLE#20SOLDER
7291-2PG-3ES
Conxall / Switchcraft
Standard Circular Connector MINI-CON PAN MT #20 PC TAIL Conn Field Installable PIN 2 POS Solder ST Thru-Hole 2 Terminal 1 Port CONN RCPT 2POS PNL MNT PIN MINI-CONPANELMT#20PCTAIL

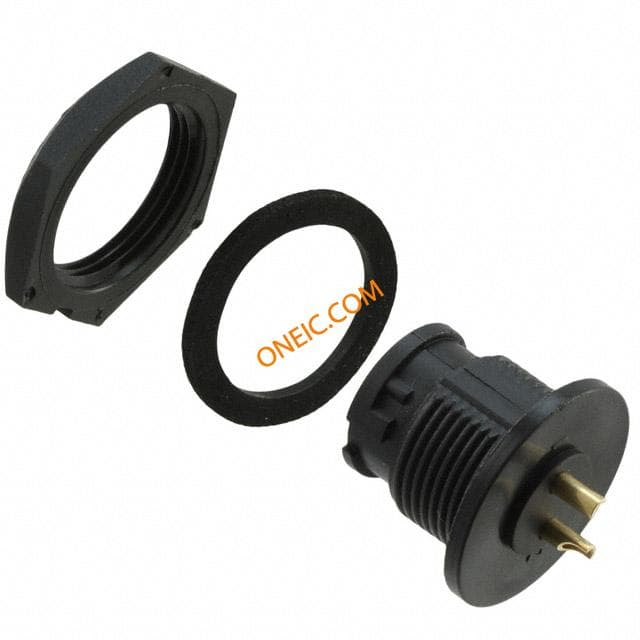

7282-2PG-300
