15380-10PG-321
| Manufacturer | |
| Description | Standard Circular Connector MAXI-CON CBL-CBL #16 CRIMP Conn Field Installable PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN RCPT 10POS CABLE PIN MAXI-CONCABLE-CABLE#16CRIMP |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 1.35 A to 23 A |
Mechanical
| Diameter | 26.9 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 18-16 |
| Orientation | Keyed | Termination | Crimp |
| Contact Type | 10Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Contact Material | Brass | Length - Overall | 63.5 |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Material, Finish | Nylon | ||
Product Info
| Type | Field Installable | Series | Maxi-Con |
| Features | Cable Clamp | Product Type | Connectors |
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts

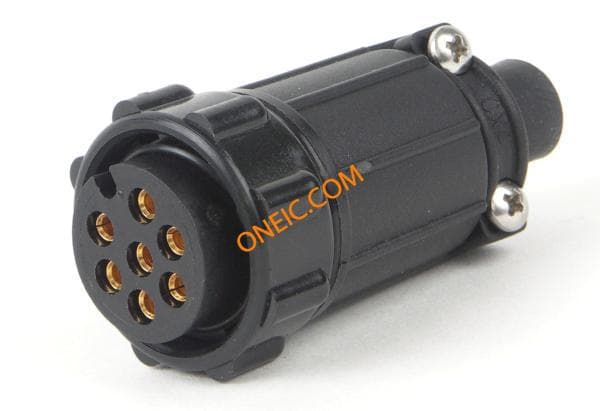

13382-10SG-321
