点击放大查看
13382-10SG-321
| Manufacturer | |
| Description | Standard Circular Connector 10P SOCKET CABLE END O.D.=.21-.25 Conn Field Installable SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port Standard Circular Connectors 10P SOCKET CABLE END O.D.=.21-.25 CONN PLUG 10POS CABLE SKT MAXI-CONCABLE#16SOLDER |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | ||
Mechanical
| Diameter | 26.9 | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Contact Type | 10Signal | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Contact Material | Brass |
| Length - Overall | 63.5 | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Material, Finish | Nylon | ||
Product Info
| Type | Field Installable | Series | Maxi-Con-X |
| Features | Cable Clamp | Product Type | Connectors |
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts

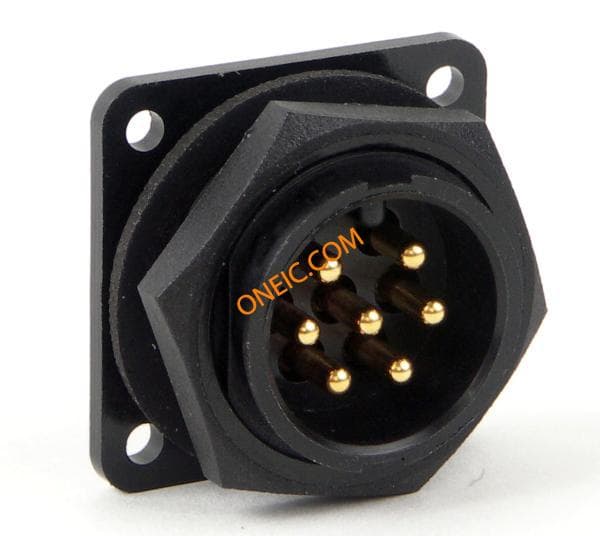

14382-10PG-300
Conxall / Switchcraft
Standard Circular Connector 10P PIN PANEL MNT W/ HEX NUT & GSKT Conn Field Installable PIN 10 POS Solder ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors 10P PIN PANEL MNT W/ HEX NUT & GSKT CONN RCPT 10POS PNL MNT PIN 10 Pole Male Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts MAXI-CON-X Series CIRCULAR CONNECTOR RCPT SIZE 16, 10POS, PANEL MAXI-CONPANELMOUNT,10waypin MAXI-CONPANEL#16SOLDER Switchcraft MAXI-CON-X 系列 10路 面板安装 直向 连接器 插头 , 公触点
14380-10PG-300
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #16 CRIMP Conn Field Installable PIN 10 POS Crimp ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON PANEL #16 CRIMP CONN RCPT 10POS PNL MNT PIN MAXI-CONPANEL#16CRIMP
13282-18SG-331
Conxall / Switchcraft
Standard Circular Connector MAXI-CON CABLE #20 SOLDER Conn Field Installable SKT 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #20 SOLDER CONN PLUG 18POS CABLE SKT CIRCULAR CONNECTOR PLUG SIZE 20, 18POS, CABLE Maxi-Con-XCableEnd,#20contact,Soldercup,18socket,Weathertight,cable.3
13282-18PG-331
Conxall / Switchcraft
Standard Circular Connector MAXI-CON CABLE #20 SOLDER Conn Field Installable PIN 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #20 SOLDER CONN PLUG 18POS CABLE PIN CIRCULAR CONNECTOR PLUG SIZE 20, 18POS, CABLE MAXI-CONCABLE#20SOLDER
14295
Conxall / Switchcraft
Standard Circular Connector MAXI CON-X RECEP CAP Connector Accessories Dust Cap Santoprene Rubber Black MAXI-CON DUST COVER DUST CAP, RUBBER MAXICON-XDUSTCAP,RECEP MAXICON-XRECEPCAP Switchcraft CON X 系列 插座 IP67 防尘盖
14482
Conxall / Switchcraft
Standard Circular Connector MAXI-CON WINGED COUPLING NUT CON - X SERIES ACCESSORIES Standard Circular Connectors MAXI-CON WINGED COUPLING NUT WINGED COUPLING NUT MAXI-CON-X MAXIWINGEDCOUPLINGRING
14381-10PG-300
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #16 PC TAIL Conn Field Installable PIN 10 POS Solder ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON PANEL #16 PC TAIL CONN RCPT 10POS PNL MNT PIN MAXI-CONPANEL#16PCTAIL
15380-10PG-326
Conxall / Switchcraft
Standard Circular Connector MAXI-CON CBL-CBL #16 CRIMP Conn Field Installable PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN RCPT 10POS CABLE PIN MAXI-CONCABLE-CABLE#16CRIMP
15382-10PG-326
Conxall / Switchcraft
Standard Circular Connector 10P PIN CBL TO CBL O.D.=.26-.30 Conn Field Installable PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port CONN RCPT 10POS CABLE PIN MAXI-CON CABLE PLUG, 10way pin MAXI-CONCABLEPLUG,10waypin MAXI-CONCABLE-CABLE#16SOLDER Switchcraft MAXI-CON-X 系列 10路 面板安装 直向 连接器 插头 , 公触点
14381-10PG-3ES
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #16 PC TAIL Conn Field Installable PIN 10 POS Solder ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON PANEL #16 PC TAIL CONN RCPT 10POS PNL MNT PIN MAXI-CONPANEL#16PCTAIL
13382-10PG-331
Conxall / Switchcraft
Standard Circular Connector MAXI-CON CABLE #16 SOLDER Conn Field Installable PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #16 SOLDER CONN PLUG 10POS CABLE PIN CIRCULAR CONNECTOR PLUG SIZE 16, 10POS, CABLE MAXI-CONCABLE#16SOLDER
15380-10PG-321
Conxall / Switchcraft
Standard Circular Connector MAXI-CON CBL-CBL #16 CRIMP Conn Field Installable PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN RCPT 10POS CABLE PIN MAXI-CONCABLE-CABLE#16CRIMP
14290
Conxall / Switchcraft
Standard Circular Connector MAXI O-RING MAXI O-RING O-RING MAXI-CON-X MAXIO-RING

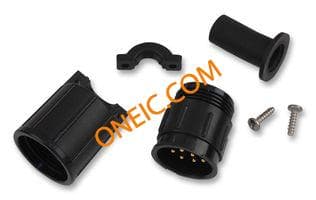

15382-10PG-331
