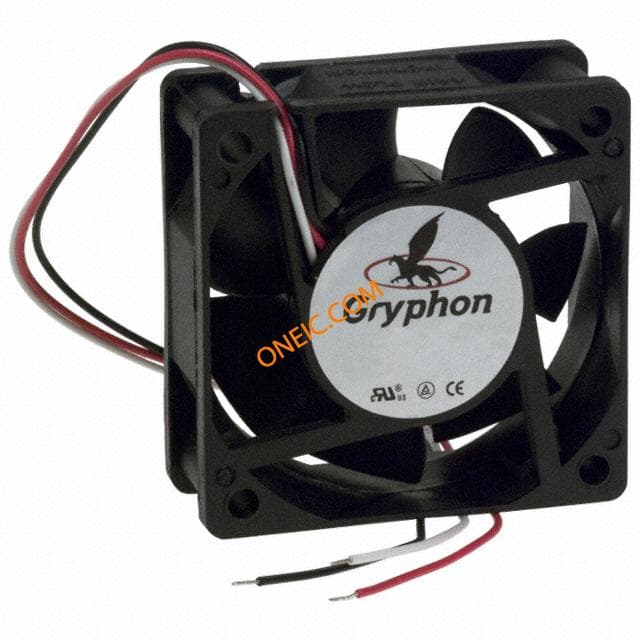

GDA6025-24BB
| Manufacturer | |
| Description | FAN TUBEAXIAL 60X25MM 24V DC DC Fan Ball Bearing 24V 0.14A 3.36W 4000RPM 19.25CFM 26.1dB Flange Mount |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CR396 | Standard Package | 40 |
Electrical
| Noise | 26.1 dB(A) | Power (Watts) | 3.40W |
| Voltage Range | 12 ~ 28VDC | Voltage Rating | 24VDC |
| Current Rating (Max) | 0.140A | ||
Mechanical
| RPM | 4000 RPM | Weight | 0.137 lb (62.14g) |
| Air Flow | 18.0 CFM (0.510m³/min) | Fan Type | Tubeaxial |
| Termination | 3 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.160 in H2O (39.8 Pa) | Size / Dimension | Square - 60mm L x 60mm H x 25mm W |
Product Info
| Features | Speed Sensor (Tach) | ||
Documents & Media
PDF Document
