AJP58
| Manufacturer | |
| Description | AJP58, Single Sided Matrix Board FR2 With 1mm Holes 2.54 x 2.54mm Pitch, 580 x 100 x 1.6mm RPB PAD, PROTOBOARD, 100X580 CIF 单面 矩阵板, FR2, 1mm孔直径, 2.54 x 2.54mm孔间距, 580 x 100 x 1.6mm |
| Category |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340019 |
| Material Flammability Rating | FR2 | ||
Mechanical
| Pitch | 2.54 x 2.54mm | Width | 100mm |
| Height | :100mm | Length | 580mm |
| Weight | 0.12 | Material | :Resin Bonded Paper |
| Footprint | :- | Thickness | 1.6mm |
| Height (Max) | :100mm | Pitch - Post | :2.54mm |
| Hole Diameter | 1mm | Board Thickness | :Prototype Board |
| Material - Body | :Bakelite | Primary Material | Synthetic Resin Bonded Paper |
| Size / Dimension | 580 x 100 x 1.6mm | Number of Positions | 1 |
Product Info
| Active Area | :2 | Copper Ports | 35µm |
| Number of Positions Loaded | :1 | ||
Similar Parts

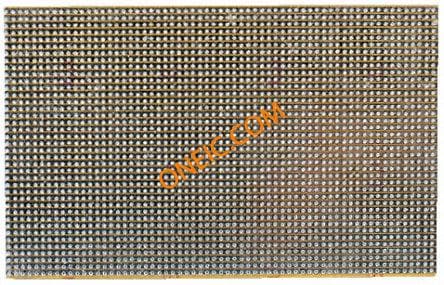

AJB16
CIF
AJB16, Single-Sided Stripboard Thermoplastic 160 x 100 x 1.5mm PCB,PROTOTYPE BOARD, 100X160 CIF , 单面 连孔万能板, 热塑塑料基体材质, 160 x 100 x 1.5mm
AJB22
CIF
AJB22, Single-Sided Stripboard Thermoplastic 100 x 220 x 1.5mm RBP STRIP, PROTOBOARD, 100X220 CIF , 单面 连孔万能板, 热塑塑料基体材质, 100 x 220 x 1.5mm
AJB58
CIF
AJB58, Single-Sided Stripboard Thermoplastic 100 x 580 x 1.5mm RBP STRIP, PROTOBOARD, 100X580 CIF , 单面 连孔万能板, 热塑塑料基体材质, 100 x 580 x 1.5mm

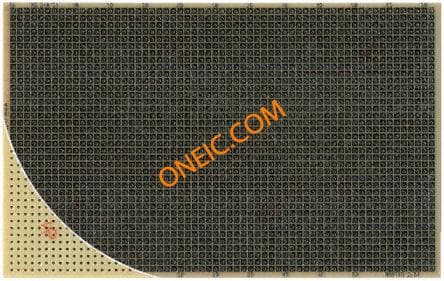

RE210-S2
