AJB22

Manufacturer	cif
Description	AJB22, Single-Sided Stripboard Thermoplastic 100 x 220 x 1.5mm RBP STRIP, PROTOBOARD, 100X220 CIF , 单面连孔万能板, 热塑塑料基体材质, 100 x 220 x 1.5mm
Category	Basic Electronic ProductsPrinted Circuit Boards

对参数有疑问？问 AI 助手

Compliance

SVHC

:No SVHC (20-Jun-2013)

Tariff No

85340019

Mechanical

Pitch	2.54 x 2.54mm	Width	220mm
Height	:100mm	Length	100mm
Weight	0.04	Material	:Resin Bonded Paper
Footprint	:-	Thickness	1.5mm
Height (Max)	:100mm	Pitch - Post	:2.54mm
Hole Diameter	1mm	Board Thickness	:Prototype Board
Material - Body	:Resin Bonded Paper	Primary Material	Thermoplastic
Size / Dimension	100 x 220 x 1.5mm	Number of Positions	1

Product Info

Copper Ports

35µm

Number of Positions Loaded

Similar Parts

AJP58

CIF

AJP58, Single Sided Matrix Board FR2 With 1mm Holes 2.54 x 2.54mm Pitch, 580 x 100 x 1.6mm RPB PAD, PROTOBOARD, 100X580 CIF 单面矩阵板, FR2, 1mm孔直径, 2.54 x 2.54mm孔间距, 580 x 100 x 1.6mm

$130.6900

Details

AJB16

CIF

AJB16, Single-Sided Stripboard Thermoplastic 160 x 100 x 1.5mm PCB,PROTOTYPE BOARD, 100X160 CIF , 单面连孔万能板, 热塑塑料基体材质, 160 x 100 x 1.5mm

$51.6000

Details

AJB58

CIF

AJB58, Single-Sided Stripboard Thermoplastic 100 x 580 x 1.5mm RBP STRIP, PROTOBOARD, 100X580 CIF , 单面连孔万能板, 热塑塑料基体材质, 100 x 580 x 1.5mm

$171.9600

Details

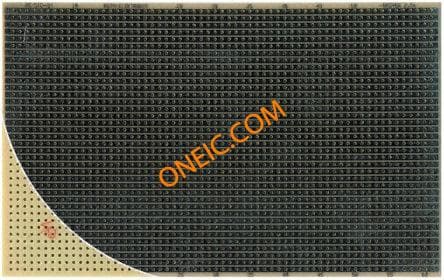

RE510-S2
