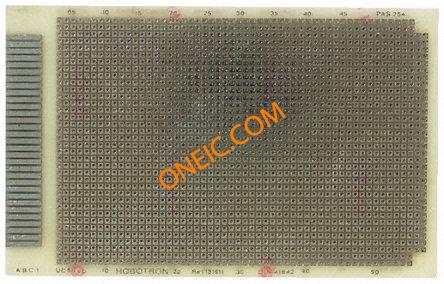

AG621
| Manufacturer | |
| Description | AG621, Double Sided Matrix Board FR4 With 1mm Holes 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm TINNER COPPER PADS 2 SIDES 100X160MM |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340090 |
| Material Flammability Rating | FR4 | ||
Mechanical
| Pitch | 2.54 x 2.54mm | Width | 100mm |
| Length | 160mm | Weight | 0.044 |
| Material | :Epoxy 16/10 | Footprint | :- |
| Thickness | 1.6mm | Height (Max) | :160mm |
| Hole Diameter | 1mm | Material - Body | :Epoxy |
| Primary Material | Epoxy Glass Fabric Laminate | Size / Dimension | 160 x 100 x 1.6mm |
| Number of Positions | 2 | Mounting Hole Diameter | :1mm |
Product Info
| Type | :Prototype Board | ||
