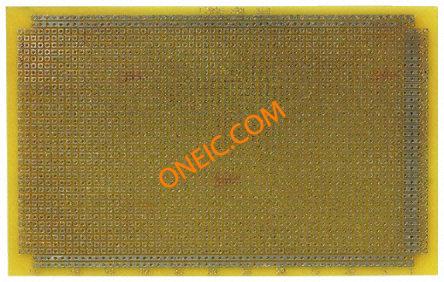

AG611
| Manufacturer | |
| Description | AG611, Single Sided DIN 41612 Matrix Board FR4 With 1mm Holes 2.54 x 2.54mm Pitch, 160 x 100 x 1.6mm TINNER COPPER PADS 1 SIDE 100X160MM CIF 单面 DIN 41612 矩阵板, FR4, 1mm孔直径, 2.54 x 2.54mm孔间距, 160 x 100 x 1.6mm |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340090 |
| Material Flammability Rating | FR4 | ||
Mechanical
| Pitch | 2.54 x 2.54mm | Width | 100mm |
| Height | :160mm | Length | 160mm |
| Weight | 0.044 | Material | :Epoxy 16/10 |
| Footprint | :DIN41612 | Thickness | 1.6mm |
| Height (Max) | :160mm | Hole Diameter | 1mm |
| Material - Body | :Epoxy | Primary Material | Epoxy Glass Fabric Laminate |
| Size / Dimension | 160 x 100 x 1.6mm | Number of Positions | 1 |
| Mounting Hole Diameter | :1mm | ||
Product Info
| Type | :Prototype Board | Connection Method | DIN 41612 |
