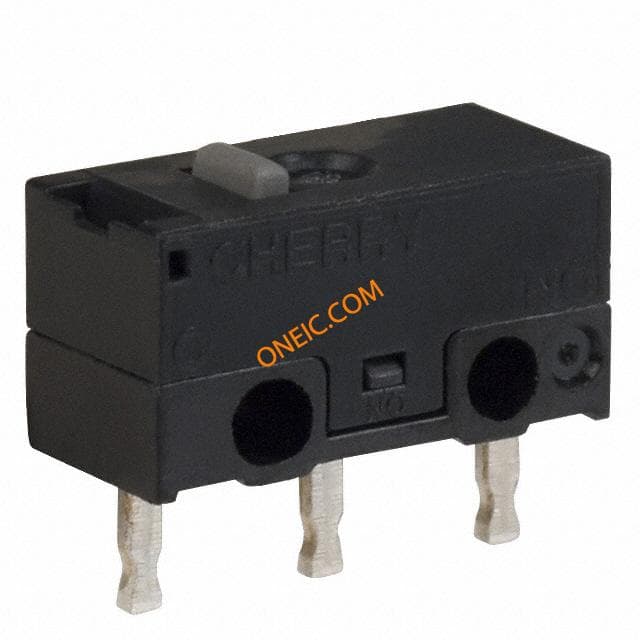

DG13B1AA
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Button PC Pins 3A 125VAC 30VDC 1.37N Thru-Hole Switch Snap Action N.O./N.C. SPDT Button PC Pins 3A 125VAC 30VDC 1.37N Thru-Hole Product Highlights: Small dimensions, just 0.504" x 0.228" x 0.256" (12.8 x 5.8 x 6.5mm) Depending on model, contact rating is suitable for low-switched currents and voltages for light-current applications with loads of up to 3 amps 125VAC Available with or without auxiliary actuator Can be fitted to circuit boards in upright position or horizontally with terminals on left or right Mechanical life: min. 1 x 106 operations (depending on model) Switch;AA;2,3A;125VAC,30VDC;StandardRatio;140g;0.504in.;UL94V-0 |
| Category |
Business
| Lead Time | 126 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Standards | ULListed,cULusRecognized | Material Flammability Rating | UL94V-0 |
Electrical
| Operation | SnapAction | Voltage Rating | 125VAC |
| Number of Poles | 1 | Switch Function | N.O./N.C. |
| Voltage - Rated AC | 125V VAC | Current Rating (Max) | 3Amps |
| Voltage - Input (Min) | 125@UL | Switch Function/Rating | N.O./N.C. |
| Voltage - DC Spark Over (Nom) | 30V VDC | ||
Mechanical
| Depth | 5.8 mm | Height | 7.4 mm |
| Body Finish | Subminiature | Termination | PCBPins |
| Contact Form | SPDT | Actuator Type | Plunger |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Mounting Style | Through Hole | Operating Force | 1.37 N |
| Contact Material | Silver Alloy | Length - Overall | 12.8 mm |
| Actuator Material | Polybutylene Terephthalate | Actuator Style/Size | Button |
| Switch Actuation Level | SPDT | Material - Housing & Prism | Polyphenylene Sulphide/N/A |
Product Info
| Type | Basic | Manufacturer | DGSeries |
| Electrical Life | 30000 | ||
Environmental
| Mechanical Life | 1000000 | Operating Temperature | -25C to 85C |
| Operating Temperature - Junction | 85C | ||
