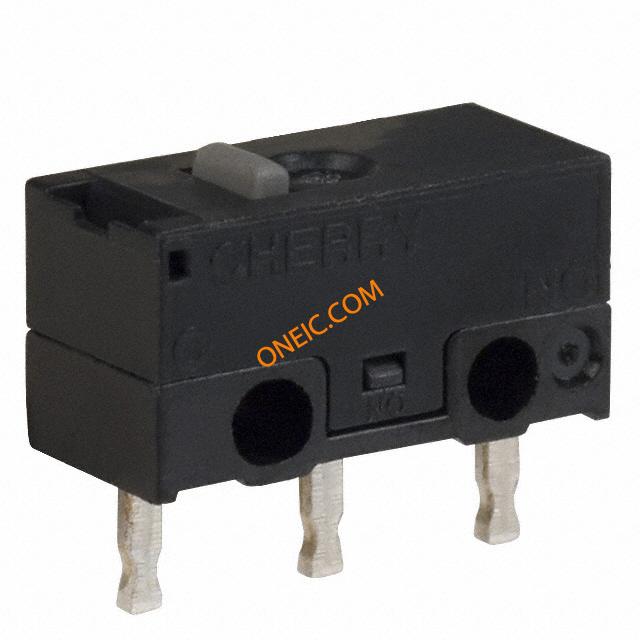

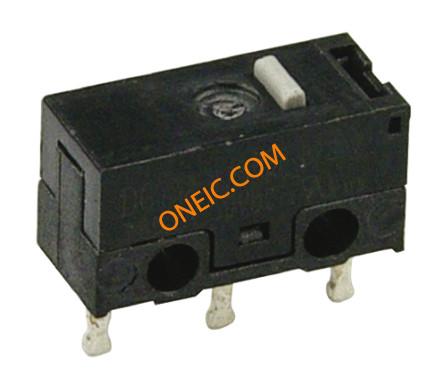

DG13-B1AA
| Manufacturer | |
| Description | Basic / Snap Action Switches SPDT 3A PC MNT SWITCH SNAP SPDT 3A PC MNT SPDT-NO/NC Button Microswitch, 3 A @ 125 V ac MICROSWITCH, SPDT, PLUNGER ACTUATOR Micro switch 3 A Plunger 1 NO+1 NC, DG13-B1AA, Cherry |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Basic / Snap Action Switches | Standard Package | 1,000 |
Compliance
| RoHS | Compliant | Tariff No | 85365080 |
| Approval Agency | :UL Recognised | Material Flammability Rating | :UL94V-O |
Electrical
| Circuit | SPDT | Voltage - Core | :250V |
| Voltage Rating | 125V | Number of Poles | :1 |
| Switch Function | On-Mom | Differential Travel | 0.004" (0.1mm) |
| Current - Modulation | :3A | Current Rating (Max) | 3A (AC), 2A (DC) |
| Current - Max/Contact | :3A | Switch Function/Rating | :(Not Applicable) |
| Contact Rating (Current) | 3 A @ 125 V ac | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | :5.8mm | Width | :12.8mm |
| Length | :6.5mm | Weight | 0.0004 |
| Material | :PPHS/PBT | Packaging | Bulk |
| Pretravel | 0.020" (0.5mm) | Overtravel | 0.008" (0.2mm) |
| Contact Form | SPDT | Actuator Type | Round (Pin Plunger) |
| Mounting Type | Through Hole | Terminal Type | PCB |
| Package / Case | :PBT (Polybutylene Terephthalate) | Operating Force | 140gf |
| Contact Material | Silver Alloy | Mounting Feature | :6.5mm |
| Termination Style | PC Pin | Color - Connectors | :Grey |
| Actuator Style/Size | :Plunger | Number of Positions | :6000 |
| Switch Actuation Level | :Snap Action | Contact Layout, Typical | SPDT-NO/NC |
Product Info
| Type | Miniature | Series | DG |
| Electrical Life | 10,000 Cycles | Operating Position | 0.213" (5.4mm) |
Environmental
| Mechanical Life | 1,000,000 Cycles | NEMA Frame Size | :IP40 |
| Ingress Protection | IP40 | Operating Temperature | -25°C ~ 85°C |
