D44LR1LD
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 10A 250VAC 250VDC 372.85VA 0.36N Screw Mount MICRO SWITCH, HINGE LEVER, SPDT 10A 250V Switch;LeverSR;10A;125/250VAC;144g;1.095in.;ThermoplasticPolyester |
| Category |
Business
| Lead Time | 56 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Standards | ULRecognized,VDEandENCEApproved | Tariff No | 85365080 |
| Material Flammability Rating | UL94V-O | ||
Electrical
| Operation | SnapAction | Power - Rated | 372.85@UL |
| Voltage Rating | 125VAC | Current Rating (Max) | 10Amps |
| Current - Max/Contact | :10A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | N.O./N.C. | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 10.31 | Weight | 0.005 |
| Body Finish | Miniature | Termination | QCTabs |
| Contact Form | SPDT | Actuator Type | FlatLever |
| Mounting Type | Screw Mount | Terminal Type | Quick Connect |
| Mounting Style | Surface/Bracket | Shell Material | ThermoplasticPolyester |
| Operating Force | :40gf | Contact Material | Silver Alloy |
| Length - Overall | 48.43 | Actuator Material | Steel/Thermoplastic Acetal |
| Actuator Style/Size | Lever | Mounting Hole Diameter | 0.113" |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
Product Info
| Type | Basic | Electrical Life | 50000@EN |
Environmental
| Temperature Rating | -40to+85°C | Operating Temperature | 85 |
Documents & Media
Similar Parts

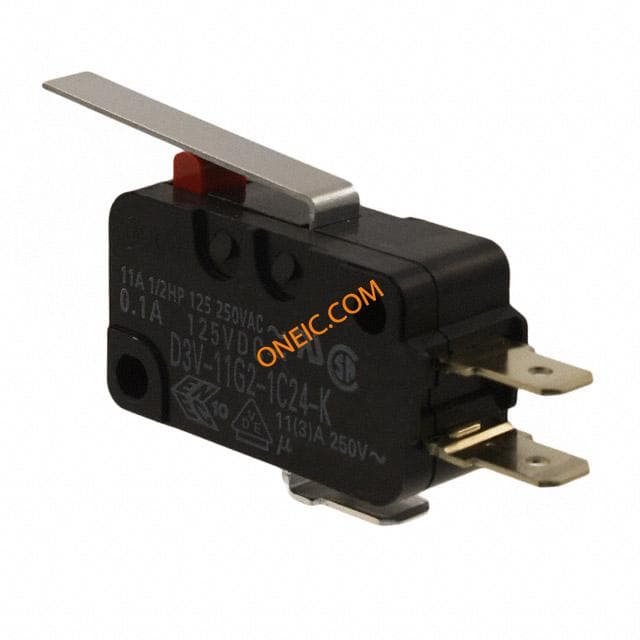

D3V-11G2-1C24-K
