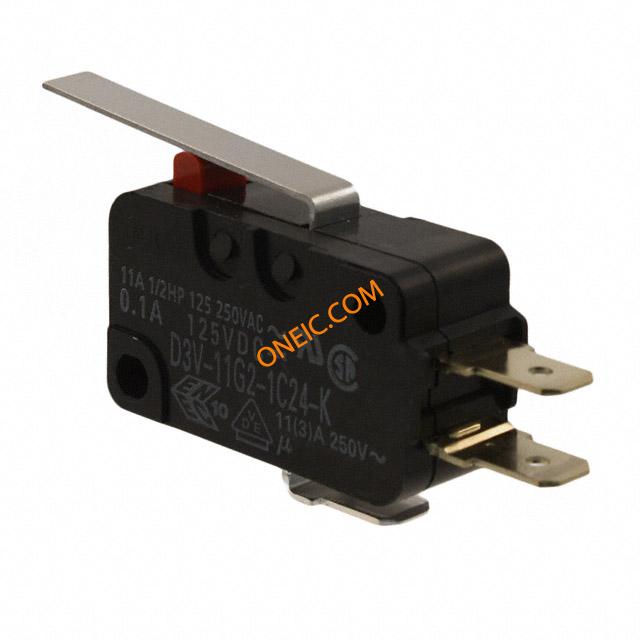

D3V-11G2-1C24-K
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Hinge Lever Quick Connect 11A 250VAC 250VDC 372.85VA 0.59N Screw Mount SWITCH LEVER SPDT QC TERM 250V Basic / Snap Action Switches SNAP ACTION SWITCH MICRO SWITCH, HINGE LEVER, SPDT 11A 250V Snap Action Switch Actuator Type: Lever (Straight) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 11 Amps |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | D3V11G21C24KNCD3V-11G2-1C24K | Product Category | Basic / Snap Action Switches |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365005 |
Electrical
| Circuit | SPDT | Power - Rated | 372.85@(CSA/UL) VA |
| Voltage Rating | 250 V | Switch Function | On-Mom |
| Differential Travel | 0.030" (0.8mm) | Current Rating (Max) | 11@250VAC A |
| Switch Function/Rating | N.O./N.C. | Voltage - Supply (Vcc/Vdd) | :250V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Pretravel | 0.157" (4.0mm) | Overtravel | 0.062" (1.6mm) |
| Contact Form | SPDT | Actuator Type | Lever, Straight |
| Mounting Type | Screw Mount | Release Force | 6gf |
| Terminal Type | Quick Connect | Operating Force | 0.59 N |
| Contact Material | Silver Alloy | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Actuator Style/Size | Hinge Lever | Switch Actuation Level | SPDT |
| Contact Layout, Typical | :SPDT | ||
Product Info
| Series | D3V | Electrical Life | 200,000 Cycles |
| Operating Position | 0.600" (15.2mm) | ||
Environmental
| Mechanical Life | 10000000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25 to 105 °C | ||
