MX1A-C1NW
| Manufacturer | |
| Description | Keylock Switches SOFT TACTILE PCB MNT SWITCH PUSH SPST-NO 0.01A 12V Pushbutton Switches SOFT TACTILE PCB MNT Switch Key SPST 0.01A 12VAC 12VDC 0.56N PC Pins 20000000Cycle Thru-Hole |
| Category |
Business
| Product Category | Pushbutton Switches | Standard Package | 250 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94HB |
Electrical
| Circuit | SPST-NO | Voltage Rating | 12V |
| Switch Function | Off-Mom | Current Rating (Max) | 10mA (AC/DC) |
Mechanical
| Packaging | Bulk | Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole | Contact Finish | Gold |
| Housing Material | Thermoplastic | Termination Style | PC Pin |
| Color - Actuator/Cap | Clear | Switch Actuation Level | SPST |
Product Info
| Type | Keyswitch | Series | MX |
| Electrical Life | 20,000,000 Cycles | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
Documents & Media
Similar Parts

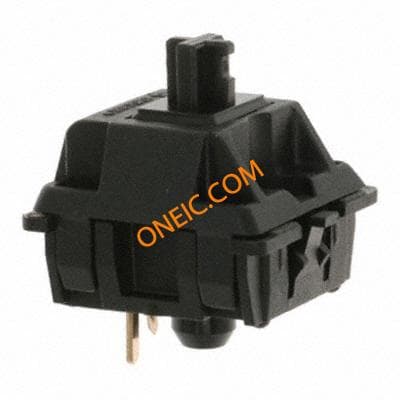

MX1A-11NN
Cherry Electrical
Keylock Switches LINEAR FACE PLT MNT Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.58N PC Pins Thru-Hole SWITCH PUSH SPST-NO 0.01A 12V SPST-NO Keyboard Switch, 0.01 A @ 12 V ac/dc, -10 to +70°C Pushbutton Switches LINEAR FACE PLT MNT SWITCH, SPNO Switch,Key;Keyboardlowprofile;10mA12VDC;Faceplacemount;Stdforce Cherry 单刀单掷 - 常开 键盘开关, 0.01 A@ 12 V 交流/直流, -10 → +70°C
MX1A-11NW
Cherry Electrical
Keylock Switches LINEAR PCB MOUNT Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.58N PC Pins Thru-Hole SWITCH PUSH SPST-NO 0.01A 12V SPST-NO Keyboard Switch, 0.01 A @ 12 V ac/dc, -10 to +70°C Smooth action keyboard switch with pins Pushbutton Switches LINEAR PCB MOUNT SWITCH, TACTILE, SPST-NO, 0.01A, THT Switch,Key;Keyboardlowprofile;10mA12VDC;PCBmount;Stdforce Cherry 单刀单掷 - 常开 键盘开关, 0.01 A@ 12 V ac, 0.01 A@ 12 V dc, -10 → +70°C

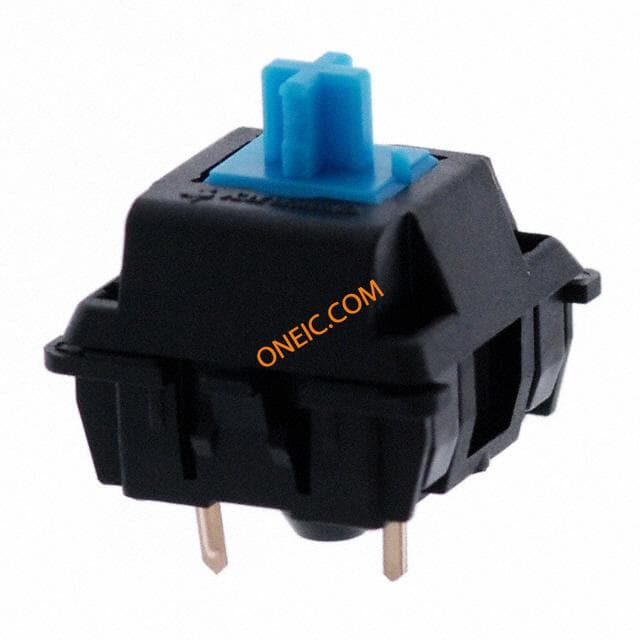

MX1A-E1NN
Cherry Electrical
Keylock Switches CLICK FACE PLATE MNT SWITCH PUSH SPST-NO 0.01A 12V Pushbutton Switches CLICK FACE PLATE MNT
